Multi Channel Rotary Slip Ring 300rpm High Rotating Speed Low Electrical Noise

China Multi Channel Rotary Slip Ring 300rpm High Rotating Speed  Low Electrical Noise supplier
Multi Channel Rotary Slip Ring 300rpm High Rotating Speed  Low Electrical Noise supplier Multi Channel Rotary Slip Ring 300rpm High Rotating Speed  Low Electrical Noise supplier

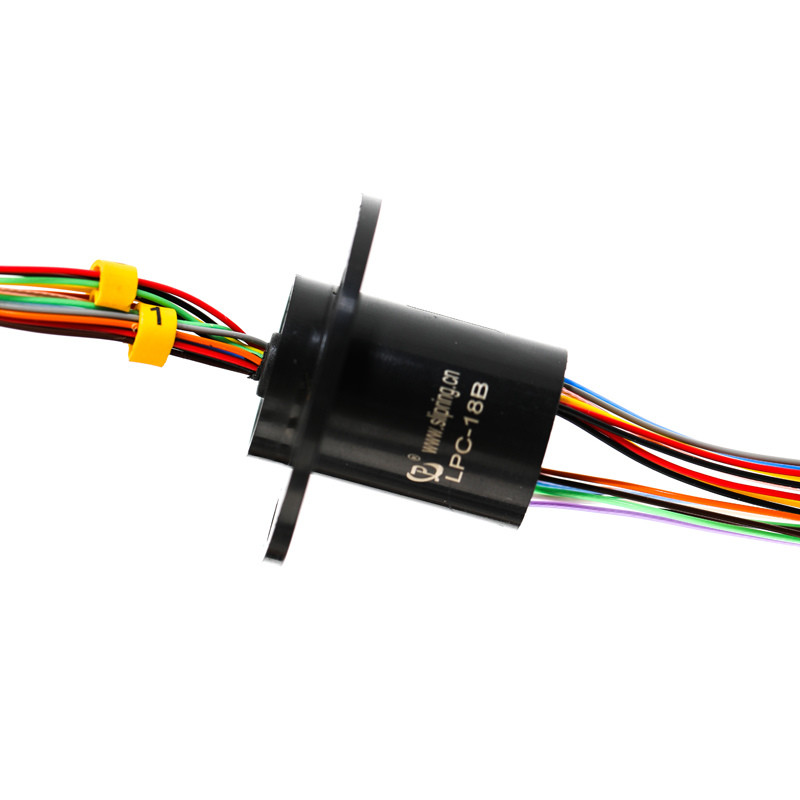

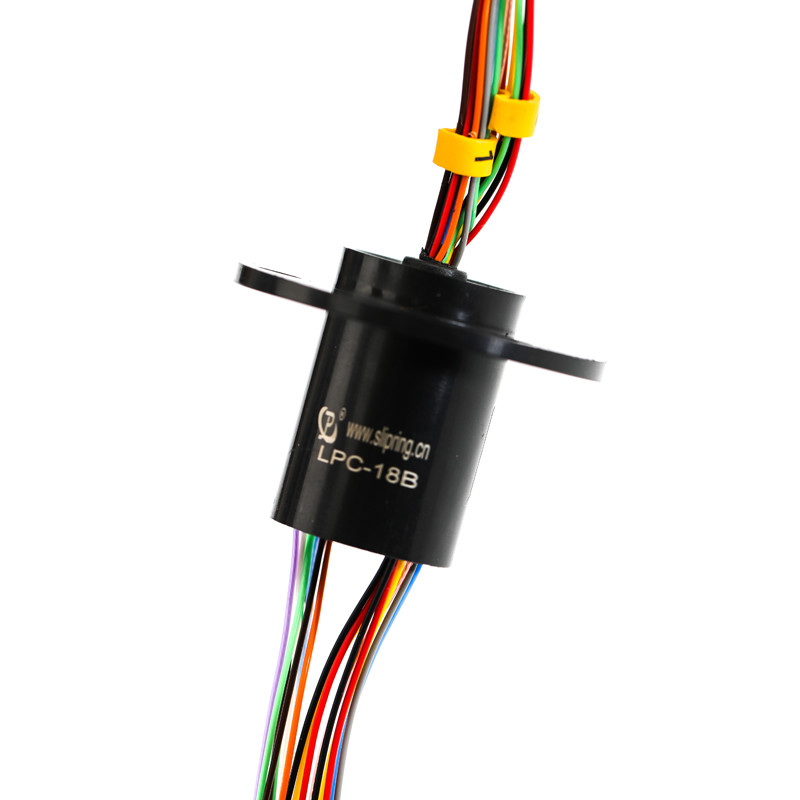

Large Image :  Multi Channel Rotary Slip Ring 300rpm High Rotating Speed Low Electrical Noise

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPC-18B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 50K units/week
Contact Now
Detailed Product Description
Circuit Models: 18 Circuits Voltage: 240 VAC/DC
Contact Material: Gold To Gold Electrical Noise: 1mΩ Min
Applications: Rotary Sensors , CCTV Pan / Tilt Camera Mounts

Multi-channel Rotary Slip Ring With A High Rotating Speed Up To 300rpm



Description



The LPC-18B capsule slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint, by using a 90° V-groove ring design for each ring, available with 5 and 10 amps power rings combined with 2 amps rings, together with a speed up to 300 rpm.



It has high bandwidth transfer capability, and smooth running.Current moves between the slip ring rotor and stator via a slide contact which is pressed against the rotating slip ring by a constant-pressure spring.



Such slip rings are able to be made of various sizes and are usually custom-made to specify the required inside and outside diameters, as well as the type of current being transferred.



Features



Gold-gold contacts

Speed up to 300 rpm continuous

Transfer analog and digital signals

Compatible with data bus protocols

Sealed units are also available

Low torque minimize system torque budget

Low electrical noise

Precision ball bearings meet or exceed life requirements for most commercial applications

High capability of bandwidth transfer



Typical Application



Monitoring

Electrical Testing Equipment

Military Rotary Table

Robotics

Medical Equipment

LED Industry

Exhibit/Display Equipment



Company Introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.



Multi Channel Rotary Slip Ring 300rpm High Rotating Speed  Low Electrical Noise



PS:Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.



Multi Channel Rotary Slip Ring 300rpm High Rotating Speed  Low Electrical Noise



Frequently Asked Questions



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
