20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station

China 20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station supplier
20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station supplier 20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station supplier

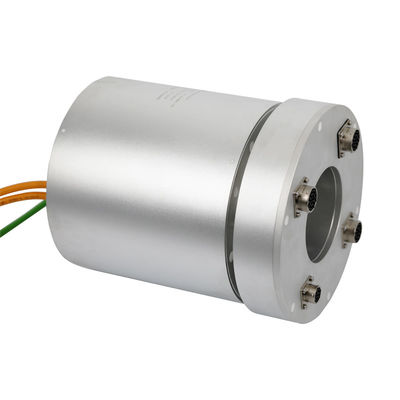

Large Image :  20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT100-0805-12S

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pcs /week
Contact Now
Detailed Product Description
Contact Material: Precious Metal Contact Revolving Speed: 0~20rpm
IP Grade: IP54 Current: 8circuits*5A,12circuits*Signal
Application: Thermal Power Station

20 Circuits 100mm ID Through Bore Slip Ring with Low Electrical Noise for Thermal Power Station



LPT100-0805-12S





Description



The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic pneumatic passages as it can integrate pneumatic hydraulic rotary joints of 16 channels at most. Also, it can integrate high-frequency rotary joints and fiber optic rotary joints to meet more technical challenges. Moreover, these slip rings are able to stand the EMC and Wet Calorific Tests.





Specification
Circuits 20 circuits
Operating Speed 0-20rpm
Working Temperature -20℃~ +60℃
Working Humidity ≤60%RH
Electrical:
Current Range 8circuits@5A, 12circuits@signal
Voltage Rating  240 /400V
Dielectric Strength ≥1000V@50Hz, ≥300V@50Hz(signal)
Insulation Resistance 500MΩ@ 500VDC,100MΩ@ 500VDC(signal)
Electrical Noise ≤10mΩ
Mechanical:
Contact Material Precious metal
Housing Material Aluminum alloy
bore size 100mm
Protection IP54



Features

  • Transmit current and signal
  • Rotor part is connected with socket
  • Rotor side is fixed on the spindle provided by customers
  • Low electrical noise



Product display

20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station



PS:

        Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.

20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station



Company show


20 Circuits 100mm ID Through Bore Slip Ring Low Electrical Noise for Thermal Power Station


Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
