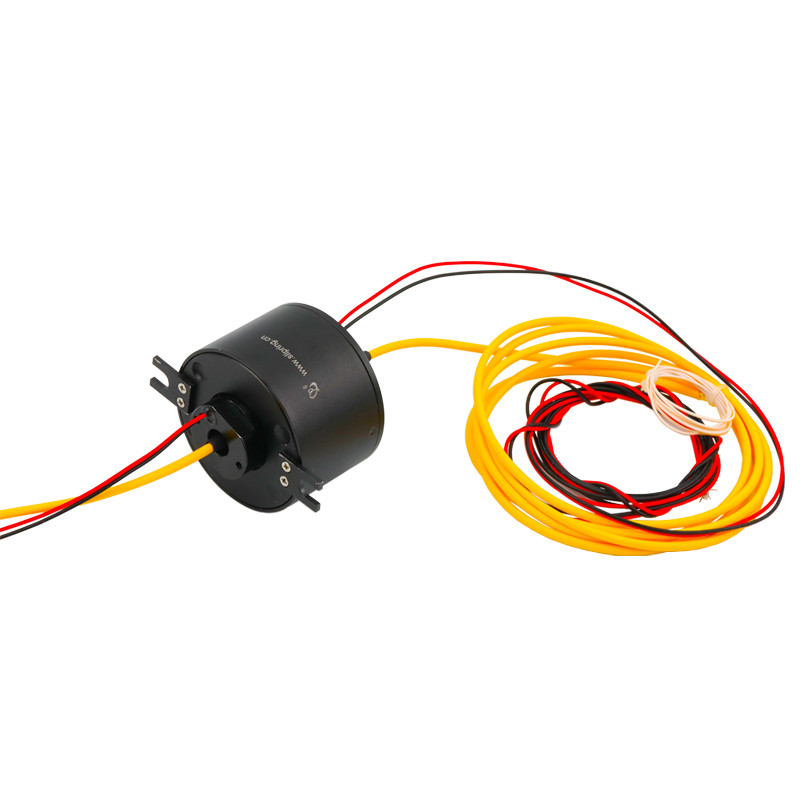

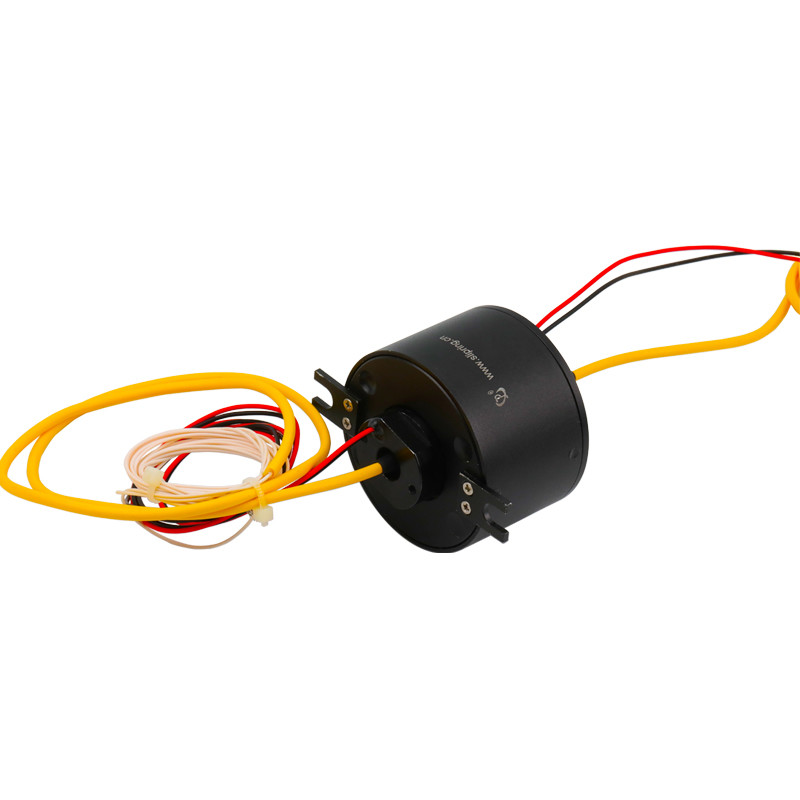

3 Circuits Electrical and Fiber Optic Rotary Joint with Wide Working Temperature Range and Long service Life
Description
The LPT000-0203-FO01 is a hybris rotary joint that integrates electrical part and fiber optic rotary joint.
It can transmit current and optical signal from rotating parts to stationary parts in a system. Apart from a large dielectrica strength, it has a long service life over 50 million revolutions. Furthermore, they are water-proof, pressure-proof, and vibration resistant. Customizable lead wires and connectors support any plug-in including flying lead.
Features
Specification
| Parameters | |||
| Circuit | 1* Fiber+2*3A | Life | ≥50 million turns(for reference) |
| Working Speed | 0-4000rpm | Working Temperature | -40℃-+80℃ |
| Optical | |||
| Wavelength | 1310-1550nm | Fiber Type | SM/MM |
| Insertion Loss | <2 dB (Typical:0.5dB) | Insertion Loss Variation | ~+/-0.25dB(Typical:+/-0.15dB) |
| Return Loss | ＞40 dB | Connector Type | ST/FC/SC/LC |
| Electric | |||
| Voltage Rating | 380VAC/DC | Current Rating | 3A per circuit |
| Dielectric Strength | 1000VAC@50Hz | Insulation Resistance | 500MΩ@500VDC |
| Contact Resistance Fluctuation Value | ≤70mΩ((50rpm) | Wire Size | AWG22# Teflon |
| Mechanical | |||
| IP | IP54 | Contact | Precious Metal |
| Housing | Aluminum Alloy | Installation Method | Rotor Side is fixed on the spindle with screws and plate |
| For any request, please contact us, our engineers will recommend you proper product or custom solution | |||
