Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed

China Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed supplier

Large Image :  Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14001.CE.UL.FCC.RoHS
Model Number: LPC-1F0203

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 12days ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /week
Contact Now
Detailed Product Description
Channel: 3 Operating Speed: 6000 Rpm
Working Temperature: -20℃~ +60℃ Working Humidity: 60%RH Or Higher
Housing Material: Stainless Steel Contact Material: Precious Metal

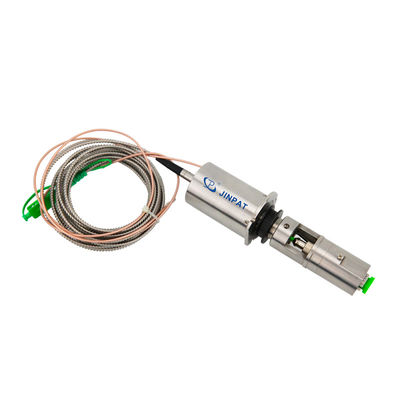

Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed



Description



       The LPC-1F0203 part is an integrated slip ring that integrates current and optical signal routing into one unit. For the optical part, its working wavelength reaches 1200~1400. In spite of a high rotating speed in medical treatment, it can still maintain an extremely low mechanical noise. The medical slip ring is also a long service life unit that sustains its equipment to be free of updating internal part or being abandoned. As a hybrid slip ring, it integrates 2 wires transmitting 2A electricity and 1 channel single mode fiber transferring optical signal.



Highlights



● Working wavelength: 1200~1400 (single mode fiber)

● Working Speed: 0~6000 rpm

● Mechanical Noise: 50dB

● Working Life: 100 million turns



Specification



Optical Part
Fiber Type Single mode
Working Wavelength 1200~1400
Insertion Loss <2dB
Insertion Loss Variation <0.5dB
Return Loss ≥40dB
Optical Power 23dBm
Bending Radius 50mm
Connector

Rotor:FC-APC connector

Stator:SC-APC connector

Fiber Length Stator:3700±20mm, rotor wire is not exposed
Electrical Part
Circuits 2 ckt*3A
Voltage 240V AC/DC
Dielectric Strength ≥500VAC@50Hz between circuits
Insulation Resistance ≥100MΩ@500VDC
Dynamic Resistance Fluctuation Value ≤35mΩ
Wire Size Rotor: φ1.1   50 Ω Coaxial Wire; Stator: RG178
Wire Length Rotor:100±5mm; Stator:400±5mm
Working Speed 0~6000 rpm
Contact Precious Metal
Housing Stainless steel
Mechanical Noise 50dB
Working Temperature -20~+60℃
Humidity ≤60%RH
Life  100 million turns



Typical application

  • Turrets
  • Radar System
  • Seafloor Opertion System
  • Material Conveying System

PS:

       Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.



Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed



Company Introduction



JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.



It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.



Electrical Optical Long-life Slip Ring Transmitting Electricity and Optical Signal with High Speed



Frequently Asked Questions



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Notes



1. The operating life of the unit depends upon temperature, rotation speed and environment.
We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.
2. If you want to know more details about JINPAT slip rings, please contact us with you special needs!

Contact Details
JINPAT Electronics Co., Ltd

Contact Person: sales

Tel: +8618128841951

Send your inquiry directly to us (0 / 3000)
