30 Circuit Capsule Slip Ring 2A Gold Contacts 300 RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Speed | 0-300 Rpm | Total Circuits | 30 |
|---|---|---|---|
| Current Rating | 2 Amps Per Circuit | Contact Material | Gold To Gold |
| Lead Length | Standard 250 Mm (9.843inch) | Electrical Noise | 1mΩMin |
| Application | Medical Equipment. | Insulation Resistance | 100 MΩ @ 500 VDC |
| Highlight | CCTV Equipment Capsule Slip Ring,FCC RoHS Capsule Slip Ring,IP40 Electrical Slip Ring |
||
Product Description

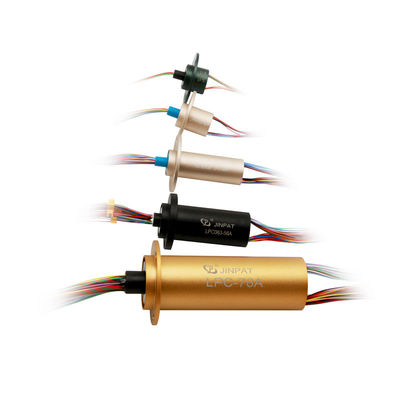

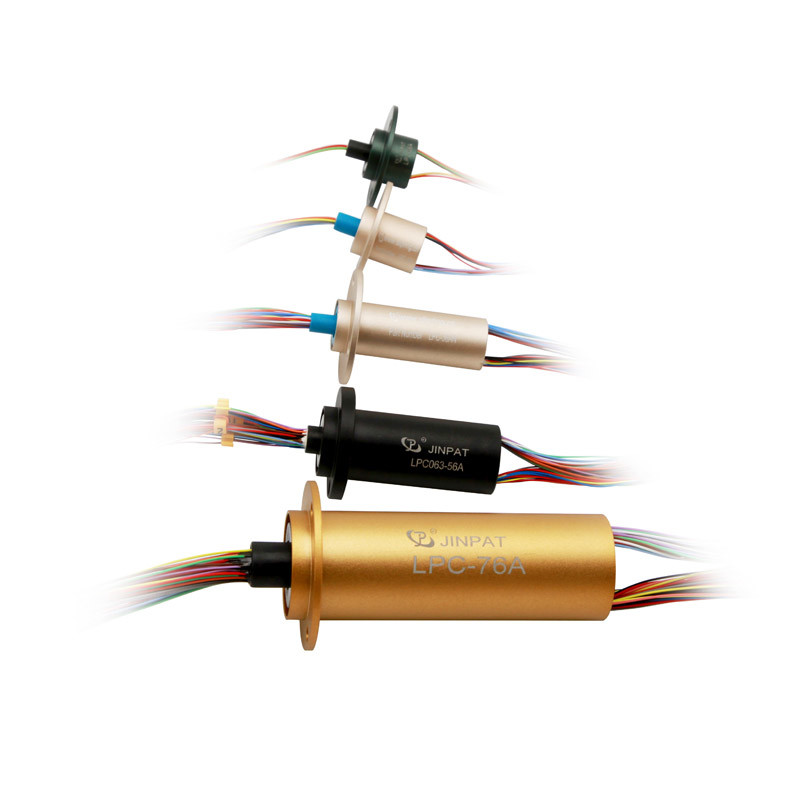

High Speed Capsule Slip Ring IP40 Low Electrical Noise For CCTV Equipment
Product Specifications
| Attribute | Value |
|---|---|
| Operating Speed | 0-300 rpm |
| Total Circuits | 30 |
| Current Rating | 2 amps per circuit |
| Contact Material | Gold to Gold |
| Lead Length | Standard 250 mm (9.843inch) |
| Electrical Noise | 1mΩMin |
| Application | Medical equipment |
| Insulation Resistance | 100 MΩ @ 500 VDC |
Product Description

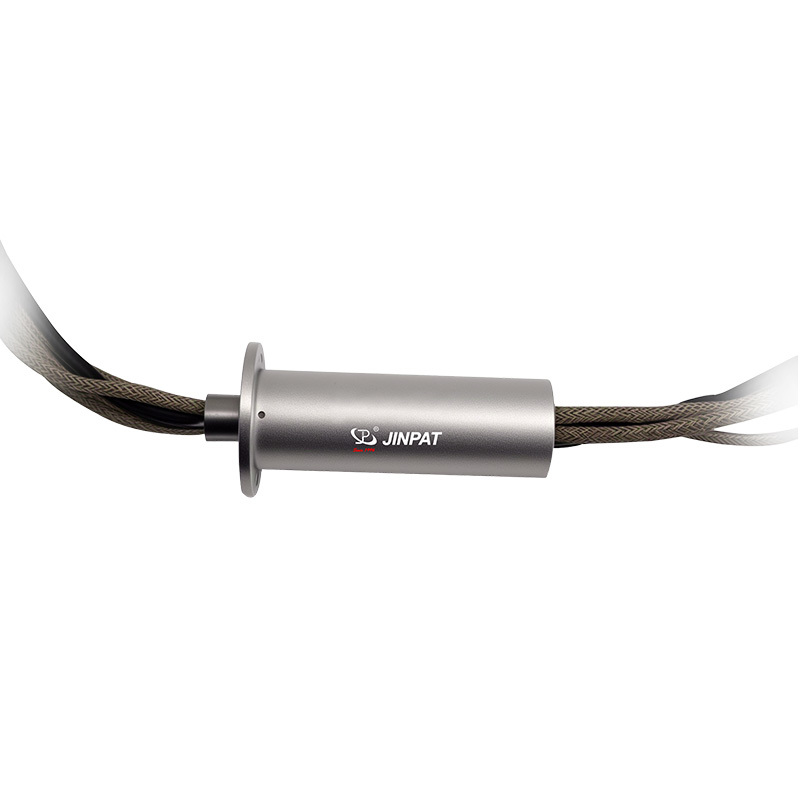

LPC-30T Capsule Slip Ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures. Also known as rotary electrical interfaces or electrical rotary joints, these slip rings enhance system capability while simplifying design and preventing damage during rotation.
Key Benefits
- Low torque minimizes system torque budget
- Compact design for space-constrained applications
- Smooth, reliable operation
- Low electrical noise for sensitive equipment
- Quick shipment available for urgent requirements
- 360° continuous rotation capability
- High bandwidth transfer capacity
Technical Specifications
| Electronic & Electric | Mechanical | ||
|---|---|---|---|
| Circuits | Total 30 CKT | Working Speed | 0~300rpm |
| Detail | 30x2A | Inner Diameter | ∅6.4~∅1.5 |
| Rating Voltage | 0~240V AC/DC | Contact Material | Gold to Gold |
| Dielectric Strength | ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) | Housing Material | Aluminum Alloy |
| Insulation Resistance | ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) | Lead Wire Length | Stator:250±5mm Rotor:250±5mm |
| Environment | Remarks | ||
| Working Temperature | -20°C~+60°C | Application | / |
| Working Humidity | ≤60%RH | Other | / |
| IP | IP40 | Note: "P" stands for power, "S" stands for signal. | |
Application Example
Customer Case Studies
About JINPAT
With 30 years of experience in slip ring manufacturing, JINPAT operates from a 7,000 square meter facility with a professional R&D team, advanced production equipment, and 300 skilled employees. Our slip rings are recognized as leading brands in Europe and North America.
Our advanced technical equipment and precision testing instruments enable us to meet diverse customer requirements with durable, reliable products across various specifications.
Frequently Asked Questions
What Is a Slip Ring and How Does It Work?
A slip ring is an electromechanical device that enables the transmission of power, electrical signals, or data from a stationary structure to a rotating component. It consists of conductive rings and brushes, allowing for continuous 360° rotation without tangling wires. Essential in systems requiring unlimited rotation while maintaining electrical connection, such as radar systems, rotating platforms, and robotic arms.
How Can I Choose the Right Slip Ring for My Application?
Key selection factors include:
- Number and type of circuits (power, signal, data, fiber optic, RF)
- Current and voltage ratings
- Rotational speed and operational lifespan
- Installation requirements (through-bore, capsule, flange-mounted)
- Environmental conditions (temperature, humidity, IP rating)
Do You Offer Electrical Slip Ring and Fluid Rotary Union Combination Assemblies?
Yes. JINPAT provides integrated solutions combining electrical slip rings with pneumatic or hydraulic rotary unions in single assemblies for simultaneous transmission of power, signals, fluids, and gases. We also offer Fiber Optic Rotary Joints (FORJs) for high-speed data transmission and High Frequency Rotary Joints (HFRJs) for RF/microwave signal transfer, available as standard models or fully customized solutions.
Which Industries Typically Use JINPAT Slip Rings?
Our products serve diverse industries including:
- Aerospace & Defense (radar systems, antennas, targeting)
- Medical Equipment (CT scanners, surgical robots)
- Wind Energy (pitch control systems)
- Automation & Robotics (rotating platforms, robotic arms)
- Marine & Engineering (cranes, excavators, oil platforms)
- Broadcast & Surveillance (pan-tilt cameras, gimbals)
What Is the Typical Lifespan of a Slip Ring?
Lifespan ranges from several million to 200 million rotations, depending on:
- Rotational speed and duty cycle
- Electrical load and signal type
- Working environment (dust, moisture, vibration)
- Material quality and brush contact design
