5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm

  • 5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-05D
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Specifications Channel CH1-CH5 Life Time,Min 5 Million Revolutions
Body Material Alumillion Alloy Case Surface Finish Conductive Oxidation
IP Protection Level IP40 IP Protection Level IP40
Rotational Torque 0.1Nm Lsolation 55dB
Highlight

IP40 High Frequency Slip Ring

,

30rpm High Frequency Slip Ring
Product Description

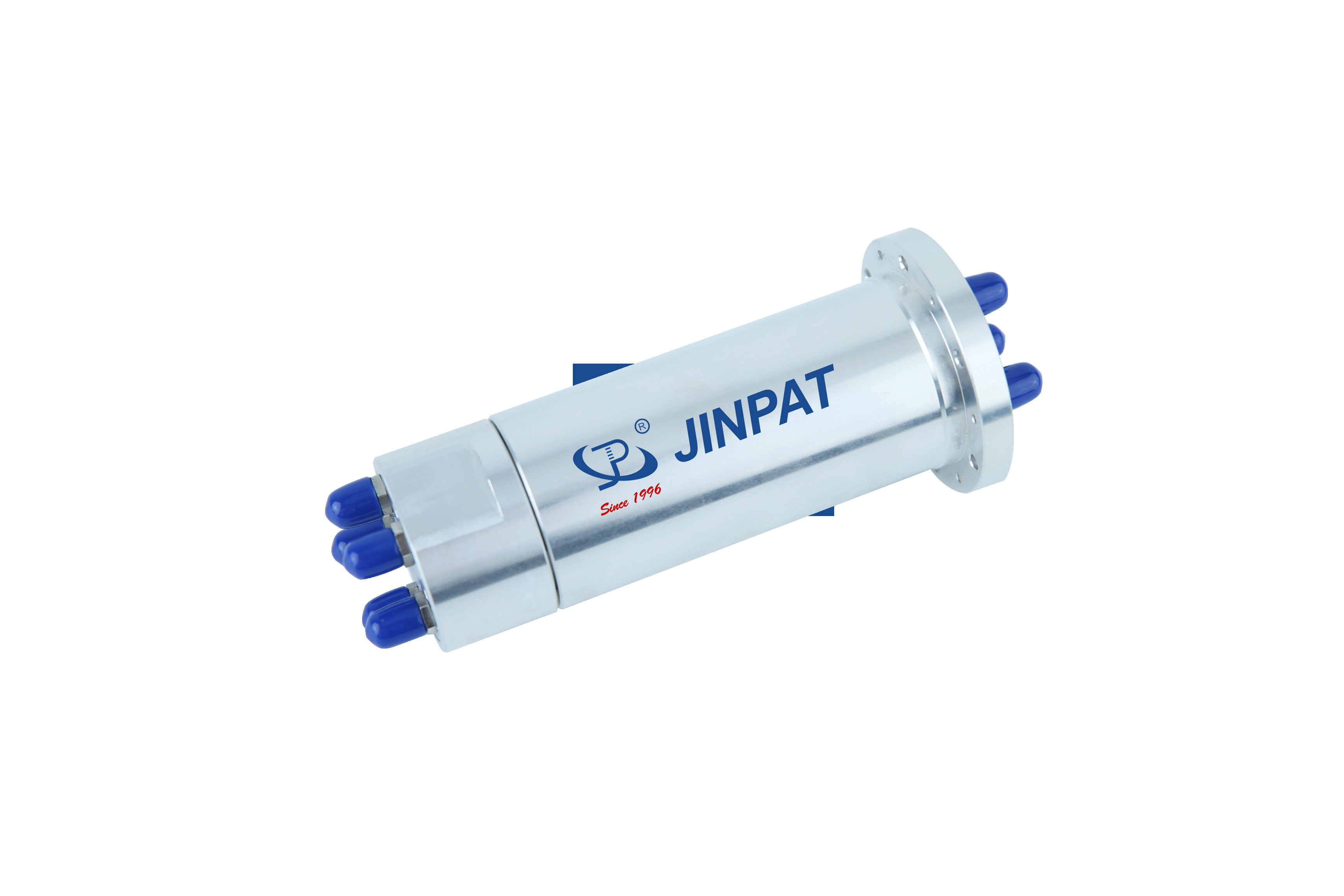

5-Channel High-Frequency Slip Ring IP40 30rpm 5.25GHz
Product Overview

The LPHF-05D is a compact, high-performance RF rotary joint developed by JINPAT, designed for applications requiring stable, high-frequency signal transmission in dynamic environments. With support for up to 5.25GHz across 5 independent channels, it ensures efficient data and power transfer in space-constrained, high-reliability systems.

Key Attributes
Attribute Value
Specifications Channel CH1-CH5
Life Time,Min 5 Million Revolutions
Body Material Alumillion Alloy
Case Surface Finish Conductive Oxidation
IP Protection Level IP40
Rotational Torque 0.1Nm
Isolation 55dB
5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm 0
Product Features
  • High-Frequency Support: Handles RF signal transmission up to 5.25GHz, ideal for real-time monitoring and high-speed data exchange.
  • EMI/RFI Protection: Advanced shielding and filtering ensure stable performance in noisy environments.
  • Multi-Channel Design: 5 channels for simultaneous transmission of RF signals and power, optimizing system integration.
  • Durable Build: Precision-machined with high-strength alloys for long-term reliability under continuous rotation.
  • Fast Customization: Supports 12 connector types (SMA, N, BNC, etc.) with rapid, tailored solutions.
  • Hybrid Integration: Can be combined with electrical slip rings for mixed signal and power transmission needs.
Typical Applications
  • High-Definition Video Surveillance Systems
  • Medical Engineering Equipment
  • Radar Systems
  • Electronic Countermeasures Systems
  • Satellite Communication Systems
  • High-End Robotics
  • Electro-Optical Pod
For integrated solutions with electrical slip rings or additional signal transmission requirements, please contact us for a customized solution tailored to your needs.
5-Channel High-Frequency Slip Ring 5.25GHz IP40 30rpm 1
Technical Specifications
Channel CH1 CH2 CH3 CH4 CH5 Starting Torque 0.3Nm
Interface Type SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) SMA-F(50Ω) Rotational Torque 0.1Nm
Type I I I I I Rotating Speed,Max. 30 rpm
Frequency Range DC-5.25GHz DC-5.25GHz DC-5.25GHz DC-5.25GHz DC-5.25GHz Life Time,Min 5 Million Revolutions
Peak Power,Max. 200W 200W 200W 200W 200W Body Material Alumillion Alloy
Average Power 10W 10W 10W 10W 10W Case Surface Finish Conductive Oxidation
VSWR,Max 2.0 2.0 2.0 2.0 2.5 Weight,Approx 0.5 kg
VSWR WOW 0.1 0.3 0.3 0.3 0.3 IP Protection Level IP40
Insertion Loss,Max. 1.5dB 1.5dB 1.5dB 1.5dB 1.5dB Operation Temperature -40~+65°C
Insertion Loss WOW 0.15dB 0.3dB 0.3dB 0.3dB 0.3dB Storage Temperature -50~+70°C
Isolation 55dB
