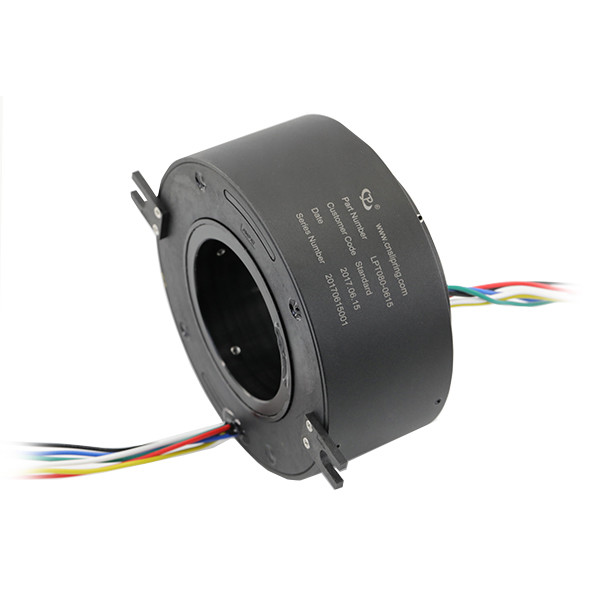

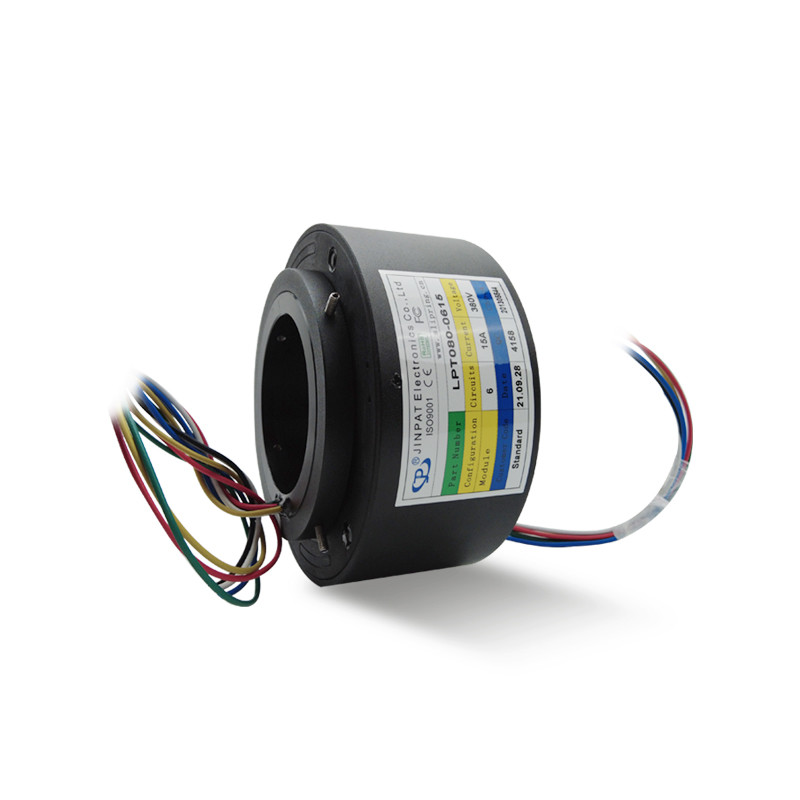

LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts

  • LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts
  • LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts
  • LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts
  • LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts
  • LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT080
Document LPT080.pdf
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inner Diameter Φ80mm Working Speed 0~300rp
Contact Material Precious Metal Working Temperature -20°C~+60°C
Housing Material Aluminum Alloy Rating Voltage 240VAC/ DC
Lead Wire Length Stator:300mm Rotor:300mm
Highlight

LPT080 Electrical Rotary Joint

,

Electromechanical System Electrical Rotary Joint

,

80mm electrical rotary joint
Product Description
Electromechanical System LPT080 Electrical Rotary Joint
Product Specifications
Attribute Value
Inner Diameter Φ80mm
Working Speed 0~300rpm
Contact Material Precious Metal
Working Temperature -20°C~+60°C
Housing Material Aluminum Alloy
Rating Voltage 240VAC/DC
Lead Wire Length Stator: 300mm, Rotor: 300mm
Product Description

The LPT080 electrical rotary joint is designed for electromechanical systems requiring continuous rotation while transferring power and data between stationary and rotating structures. Also known as a slip ring, rotary electrical interface, or swivel, this component enhances system performance by eliminating damage-prone dangling wires.

Key features include:

  • 80mm unobstructed through bore for routing hydraulics, pneumatics, or concentric shaft mounting
  • Advanced fiber brush technology with multiple contact points per bundle
  • Low contact force and wear rates with no lubrication required
  • Field-serviceable brush blocks
  • Capable of transferring current and various signals simultaneously (Ethernet, USB, HDMI, etc.)
Electronic & Electrical
  • Circuits: 6 circuits (6×5A)
  • Rating Voltage: 240VAC/DC
  • Dielectric Strength: 1000VAC@50Hz
  • Insulation Resistance: ≥500MΩ@500VDC
Mechanical
  • Working Speed: 0~300rpm
  • Inner Diameter: Φ80mm
  • Contact Material: Precious Metal
  • Housing Material: Aluminum Alloy
  • Lead Wire Length: Stator 300mm, Rotor 300mm
Environment
  • Working Temperature: -20°C~+60°C
  • Working Humidity: ≤60%RH
Technical Drawings
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 0
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 1
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 2
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 3
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 4
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 5
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 6
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 7
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 8
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 9
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 10
LPT080 Through Hole Slip Ring 80mm 300rpm Precious Metal Contacts 11
Frequently Asked Questions
What do we do?

We specialize in developing, designing and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.

How long have we been in the business?

With experience since 1996, we've served thousands of customers with reliable products and customized solutions.

Why choose precious metal contacts over mercury?

Precious metal contacts are safer, especially for applications involving food processing, pharmaceuticals, or other environments where mercury contamination would be hazardous.

Note: The operating life depends on temperature, rotation speed, and environment. For wire color codes or additional technical information, please contact our sales engineers. Certain proprietary details are not published online to protect trade secrets.

For custom solutions or more information about our slip rings, please contact us directly.
