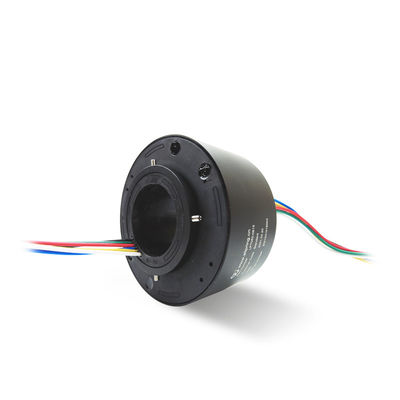

Aluminum Alloy Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT050
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week
Product Details
Inner Diameter Φ50mm Working Speed 0~300rp
Contact Material Precious Metal Operating Speed 300 Rpm
Housing Material Aluminum Alloy Rating Voltage 240VAC/ DC
Lead Wire Length Stator:300mm Rotor:300mm
High Light

300rpm Through Bore Electrical Slip Ring

,

50mm Electrical Slip Ring

,

Aluminum Alloy Through Bore Slip Ring

Product Description

Aluminum Alloy Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

LPT050 Series Slip Ring with Through Bore 50mm

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPT050 uses JINPAT fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact friction per fiber and low contact wear rates. In addition,
fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.



Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~300rp
Detail 6X5A Inner Diameter Φ50mm
Rating Voltage 240VAC/ DC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:300mm

Rotor:300mm

Environment Remarks
Working Temperature -20°C~+60° Other /
Working Humidity ≤60%RH





LPT050-0605-Outline Drawing

LPT050-0605 (2).png





LPT050-0610-Outline Drawing











LPT050-0615-Outline Drawing



LPT050-0615 (2).png





LPT050-1205-Outline Drawing










LPT050-1210-Outline Drawing



LPT050-1210 (2).png


LPT050-1215-Outline Drawing








LPT050-1805-Outline Drawing






LPT050-1810-Outline Drawing






LPT050-1815-Outline Drawing

LPT050-1815 (2).png





LPT050-2405-Outline Drawing




LPT050-2410-Outline Drawing




LPT050-2415-Outline Drawing








Frequently Asked Questions

What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.

How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.

Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.


Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
