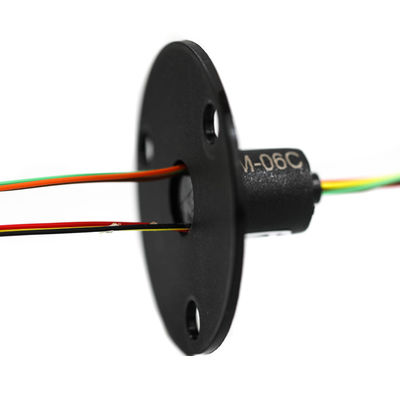

6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring

  • 6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring
  • 6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring
  • 6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-06C
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 6 Voltage 240 VAC/DC
Contact Material Gold To Gold Other Application Medical Slip Rings
One Application CT Machine Two Application Robotics Slip Rings
Lead Length Standard 250 Mm (9.843inch)
High Light

compact slip ring

,

small slip ring

,

6 Circuits CT Slip Ring
Product Description

Max. Speed Up to 300 rpm 6 Circuits 1 Amps Per Circuit CT Slip Ring 240 VAC / DC Volatge advanced slip ring technology



Description



LPM-06C slip ring is a standard, off-the-shelf unit that color-coded lead wires are used on both the stator and rotor for simplified electrical connections.



These slip rings are manufactured by utilizing premium grade metal-alloys using the edge-cutting technologies with the help of our deft team members. The offered slip rings are assembled in varied mechanical components to increase the rate of power transmission.



The family of these compact sling ring capsules permits enormous versatility in dealing with the size requirements of systems when there are no bigger models available.



Specifications
Operating Speed 0-300 rpm
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 1 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
6 18.2 LPM-06C




Outline Drawing



6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring 0

Application picture

6 Circuits CT Slip Ring 240 VAC / DC Volatge advanced Slip Ring 1
