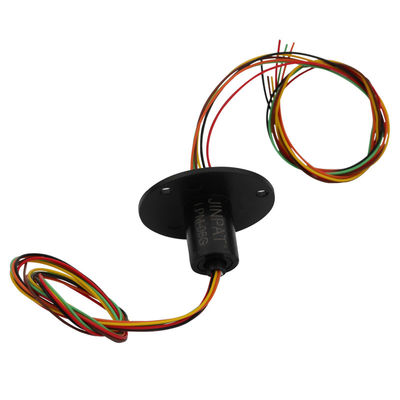

6 Circuits Miniature Slip Ring LPM-06G
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 6 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Contact Material | Gold To Gold | Other Application | Revolving Door |
| One Application | Robotics Palletizing Machines | Two Application | CT Machine |
| Lead Length | Standard 250 Mm (9.843inch) | ||
| High Light | compact slip ring,mini slip ring |
||
Product Description
Stable Performance 6 Circuits Miniature Slip Ring / Rotary Union Signal Transmission for Swivel Table
Description
Its compact and ergonomic structure makes it suitable for application where installation space is limited.
The contact pairing material and its shape make the signal transmission reliable and continuative even in application where precision is required in the transmission of the signal
It has higher performance and longer working life, higher speed rotating speed, low noise.
LPM-06G, suitable for all kinds of design of lightweight, compact space. High-quality stainless steel shell material, suitable for all kinds of harsh working environment. High-quality gold plated ring, to ensure the reliability of power supply and signal transmission;
It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 1 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 30# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 1mΩMin |
| Capsule Length =L | ||
| # of Circuits | L (mm) | Part No |
| 6 | 18.2 | LPM-06G |
Outline Drawing
Application picture
