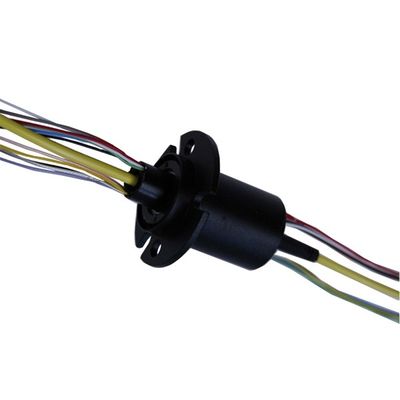

Fiber Optic Compact Slip Ring, 1 Circuit Fiber / 12 Circuits IP68,For Wind Turbine

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-1F1202
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Circuits 1 Circuit Fiber/ 12 Circuits Connector Types FC/SC/ST/SMA /LC
Fiber Types SM/MM Electrical Voltage Rating 240VAC/DC
IP IP68(Fiber Part) Application Wind Energy Turbines
High Light

fibre optic slip ring


fiber optic slip ring

Product Description

Fiber Optic Compact Slip Ring, 1 Circuit Fiber / 12 Circuits IP68,For Wind Turbine


LPC-1F1202 has 1 optical channel and 12 power channels. It is a slip ring model that can function smoothly in harsh environments with no contact, no friction and therefore attain a super long product life. Hybrid transmission of various signals(video, serial data and network data,etc.) Adopting fiber optics as medium allows no leakage and interference-free reliable transmission up to a hundred miles. The slip ring is light and compact, and is able to integrate with electrical slip rings. System upgrade is very convenient and flexible.


Outside Drawing


LPC-1F1202-fiber optic rotary joints.jpg


Specification (Electrical + Fibre-Optical )


Electronic & Electric Mechanical
Circuits Total 12CKT

Working Speed

Detail 12x2A Dynamic Resistance Fluctuation Value ≤35MΩ
Rating Voltage 0~240V AC/DC Contact Material Gold to Gold
Dielectric Strength 500VAC@50Hz(P) ≥100VAC@50Hz(S) Housing Material Aluminum Alloy
Insulation Resistance ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) Lead Wire Length Rotor:250+50/-0mm
Environment Remarks
Working Temperature -20°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP IP40 Note: "P" stands for power, "S" stands for signal.
Coaxial Parameter
Optical fiber type Single mode(9/125um) The bending radius 50mm
Working wavelength 1310/1550nm Jacket types ⌀3(TPU)
Insertion Loss <2.0dB Connect Model /
Insertion Loss-WOW <0.5dB Optical fiber Length



Return loss >40dB
Light power 23dBm



  •  Ruggedized for harsh environments
  •  High return loss and low crosstalk
  •  Variety of configuration options
  •  Compact size and package
  •  High transmission rates and low resistance
  •  Custom designs available
  •  Full closed structure
  •  Optical and electrical rotary connection for single mode or multimode systems


  •  Single channel design and Muti channel design
  •  Working in a high shock environment
  •  Housing material/ Package style
  •  Over 200,200 hrs working lifetime
  •  Exceed 100km fiber data connector
  •  Integrated power channel and signal channel
  •  Long distance data transmission
  •  Typical applications
  •  Single mode or Multimode & Single channel or Multichannel

Main Application

  •  Radar Antennas
  •  Vehicle Turrets
  •   Robotics Vehicles
  •  Medical Systems
  •  Fiber Optic Cable Reels
  •  Security Systems
  •  Material Handling Systems
  •  Sensor Platforms
  •  Video Surveillance Systems
  •  Marine Population Systems
  •  Wind Energy Turbines
  •  Remotely Operated Vehicles
