Capsule Ethernet High Definition Video Slip Ring With Stable Signal And Low Insertion Loss

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number Ethernet slip ring
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Hybrid Max. Channel 56 Circuits
Feature High Definition Max. Through Bore 80mm
Characteristic Military Coating Technology Applications 10 / 100 / 1000BaseT Transmission
High Light

56 circuits slip ring units

,

80mm signal slip ring

,

80mm Video Slip Ring

Product Description

Capsule Ethernet High Definition Video Slip Ring Stable Signal And Low Insertion Loss



Description



Ethernet slip ring is an electric rotary joint aiming at the transmission of Ethernet signal. Ethernet slip ring is specifically for 250MHz frequency signal design, used to transmit 100m/1000m Ethernet signal.



This series of the product can mix electrical power channels and signal channels. At the same time, it can transmit multi-channel low-frequency signal and current and has the advantages of stable transmission, no package loss, no code string, low return loss and low insertion loss.



Feature and advantage

  • The maximum hollow shaft hole design up to 80mm
  • Ultra long working life and free maintenance
  • 360-degree continuous rotary transmission power or data signal
  • Compatible with data bus protocol
  • Wear resistance and oxidation resistance

Applications

  • 10 / 100 / 1000BaseT transmission
  • Motion control
  • Video over Ethernet
  • CCTV IP-surveillance



Product display

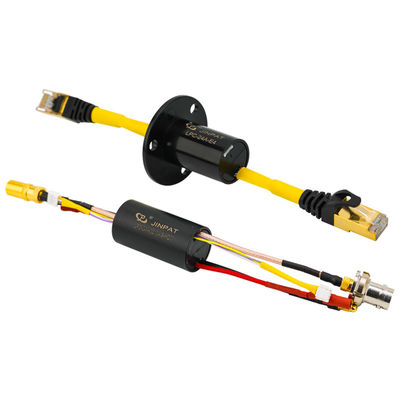

Capsule Ethernet High Definition Video Slip Ring With Stable Signal And Low Insertion Loss 0

Company introduction


JINPAT is rich technologically in advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.

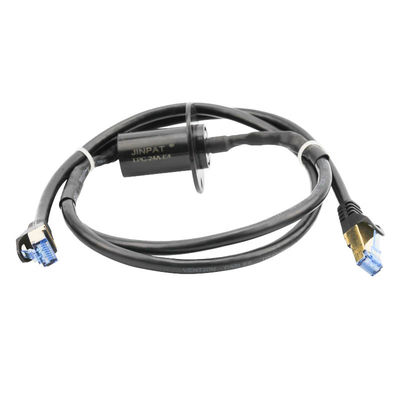

Capsule Ethernet High Definition Video Slip Ring With Stable Signal And Low Insertion Loss 1



PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.



Capsule Ethernet High Definition Video Slip Ring With Stable Signal And Low Insertion Loss 2


Frequently Asked Questions

What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.

How long have we been in the business?
JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.

Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.

When would I use separate slip rings, as opposed to the capsule ones?

A separate slip ring can sometimes allow for size constraints or cost limitations, which is better than a capsule one. It also allows you to mate the rotor and stator in your own system as you desire. Our slip ring engineers can help you with their years of expertise to decide which approach is better for your design.

Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.


Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
