Super Mini 5 Circuits Rotary Slip Ring Supporting Multi Signal Transmission

Super Mini 5 Circuits Rotary Slip Ring Supporting Multi Signal Transmission

Description

A slip ring is also called rotary electrical interfaces, rotating electrical connectors, collectors, swivels, or electrical rotary joints, these rings are commonly found in slip ring motors, electrical generators for alternating current (AC) systems and alternators and in packaging machinery, cable reels, and wind turbines.

This series of 5 circuits super miniature slip ring is newly developed. Its outer diameter is only 5.5mm while housing material uses stainless steel with small size and beautiful shape. Also, it can transmit LVDS signal, 422 serial signal, analog signal, network signal etc.

Features

• Stainless steel material
• Stable performance
• Transmitting 5 circuits@1A current and a variety of complex signals
• Small and compact structure design
• Long service life

Advantages

• Low torque minimizes system torque budget
• Compact design to fit into the most demanding space.
• Smooth running
• Low electrical noise
• Quick shipment per your urgent requirement

Typical application

• UAVs
• Handheld camera
• Robots
• Exhibition / Display Equipment
• Instrumentation

Dimensions

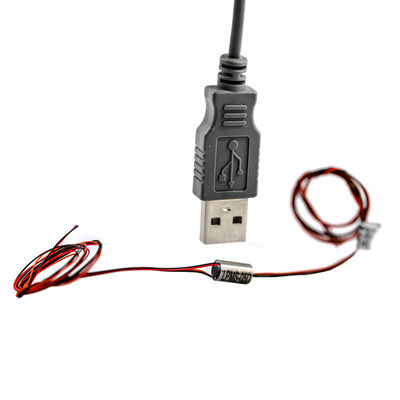

Product Display

Application Picture

Cooperative Customer Case

Company introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
