17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals

China 17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals supplier

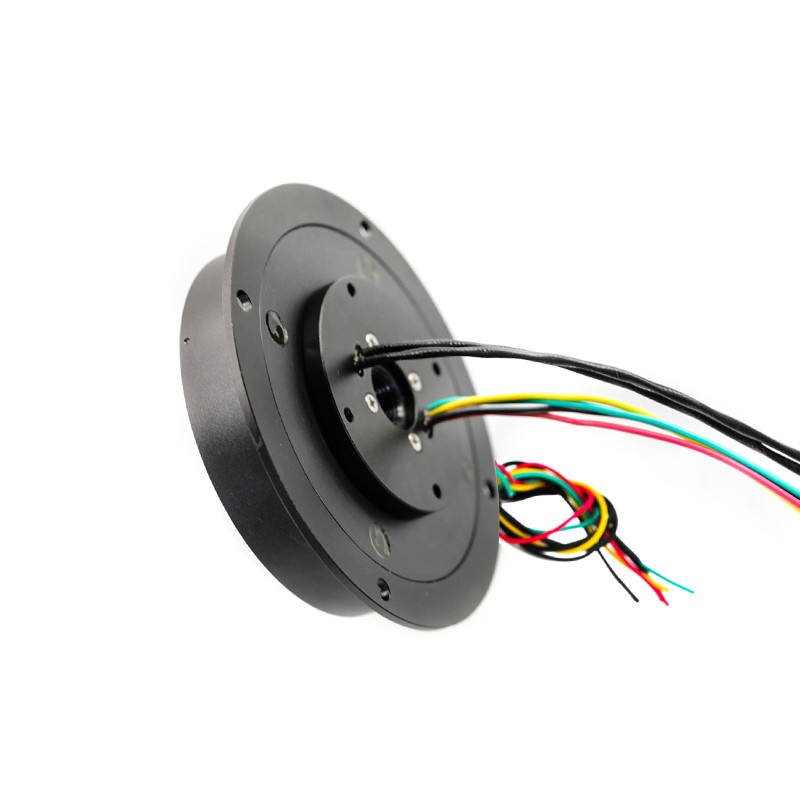

Large Image :  17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPK000-0410-08S-E2

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: T/T, C/C, Paypal
Supply Ability: 500 pcs/week
Contact Now
Detailed Product Description
Current: 10 A Voltage: 220 VDC/AC
Working Speed: 0~50 Rpm Contact: Precious Metal
Working Temperature: -40~+70℃ IP: IP65

7 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals



Description



 The LPK000-0410-08S-E2 pancake slip ring is designed with many circuits up to 17ckt. It can transmit 100M Ethernet, RS and other signals. Reliable contact and ultra-low electrical noise of the light slip ring, together with a high rotating speed are the notable characteristics. They are proven to be of qualified products, secured by the full-fledged quality control center. Moreover, Such Pancake units for encoder are equipped with ready-made photoelectric encoders. Moreover, they can stand the wet calorific test. 360° rotating transmission without surge kind of interference or data package loss wins the customers’ recognition.



Features & Advantages

Features

Transmit Ethernet, USB, RS, Canbus, Firewire and other signals in 360° rotation

Reliable performance with high rotating accuracy

Low friction force, contact resistance and no friction fragment with advanced fiber brush technology

Many circuits (17)

Reduced unit integrating signal, power and HF transmission, easy to install

Long service life







Applications

  • Packaging Machine
  • Automation Equipment
  • Robotics





Outline Drawing



17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals





Specification





Specifications
Operating Speed   0-50 rpm
Circuits    17
Voltage   220 VAC/DC
Rated Current    10 A per circuit
Temperature Range   -40℃ to +70℃
Humidity    95%RH
IP    IP65
Lead Length    Stator:1000mm
   Rotor: 1000mm
Dielectric Strength   ≥500V@50Hz (Current)

    300V@50Hz (Signal)

Insulation Resistance

   300MΩ@500VDC(Current)

   100MΩ@300VDC(Signal)

Electrical Noise   ≤70mΩ
Contact    Precious Metal
Housing    Aluminum Alloy





Product Display



17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals



Company Show



17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals





Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.

17 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals
