48V 8 Circuits Super Mini Slip Ring 0-300 Rpm Operating Speed For Smart Phone Stabilizer

China 48V 8 Circuits Super Mini Slip Ring 0-300 Rpm Operating Speed For Smart Phone Stabilizer supplier

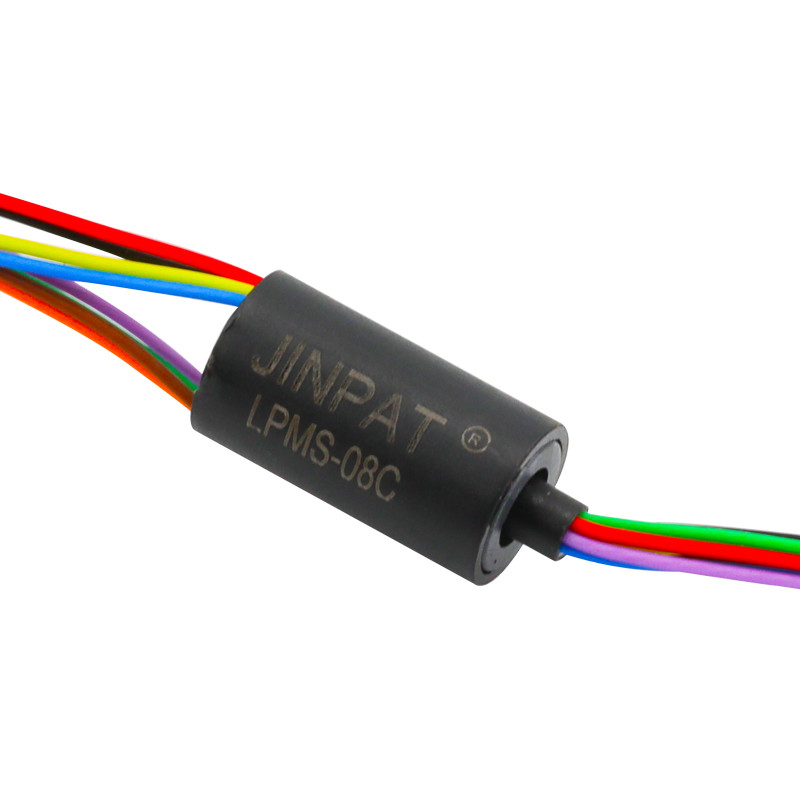

Large Image :  48V 8 Circuits Super Mini Slip Ring 0-300 Rpm Operating Speed For Smart Phone Stabilizer

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPMS-08C

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 50K units/week
Contact Now
Detailed Product Description
Contact Material: Precious Metal Operating Speed: 0-300 Rpm
Number Of Circuits: 8

48V 8 Circuits Super Mini Slip Ring 0-300 Rpm Operating Speed For Smart Phone Stabilizerh Long Life



Description



The LPMS-08C super miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPMS-08C unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



Specification



Circuits 8
Current Rating 1A
Voltage 48 VAC/DC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Wire Size φ0.5 30# silver plated Teflon UL
Lead Wire Length Rotor:250±5mm; Stator:250±5mm
Working Temperature -20~+60℃
Protection Grade IP54



Main Application

  • Electric devices
  • Smart devices
  • Industrial machinery
  • LED industry
  • Medical equipment
  • High-Speed drome

Outline Drawing


Product Display






PS:

Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.




Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.



Company Information

Other products



-.jpgLPC2.jpg--LPMS-02.jpgLPKS060-0412-E2.jpgLPS2.jpgLPR.jpgLPFO-01E3.jpgLPHF-02A.jpg


48V 8 Circuits Super Mini Slip Ring 0-300 Rpm Operating Speed For Smart Phone Stabilizer




FAQ

What do we do?

We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.



How long have we been in the business?

JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.



Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.



Notes:


The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.


If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.



For more information, please visit our official website: http://www.slipring.cn
