1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing

China 1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing supplier
1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing supplier 1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing supplier

Large Image :  1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPHF-01A

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 50K units/week
Contact Now
Detailed Product Description
Channel Number: 1 Frequency Range: DC To 18GHz
Peak Power, Max: 1500W

RF Rotary Slip Ring Description

RF rotary joint is used in devices that rotate continuously, and transmit high frequency and high speed rate signal from stationary part to rotating part. This kind of slip ring is compact in structure and easy to integrate into other devices. It is reliable in performance and excellent in shielded effect.

Meanwhile, RF coaxial connector also enjoys a good function of processing signal besides the performance that mentioned above. For example, Filtering, phase-modulation, frequency mixing, attenuation, detection and so forth. Furthermore, the low VSWR and wastage could better satisfy the needs of weapon system and precise measurement instrument.


RF Rotary Slip Ring Features & Advantages

  • Excellent in shielded effects and anti-interference capacity
  • Integrated unit of high frequency and electric
  • Modular design and physical integration make it compact in structure
  • Ultra-low insertion loss, VSWR and phase-WOW
  • Optional connector type
  • Long service life
  • Cost-effective
  • No maintenance



RF Rotary Slip Ring Custom solution :

  • Available for separate transmission of single or multi-channel high frequency signals or integrated transmission of electrical signal (200 circuits at most) and high frequency
  • Simultaneous transmission of multiple signals or channels (4 at most) is supported





Channel 1
Frequency Range DC to 18GHz
SVWR, max 1.20@ 0 to 6GHz; 1.25@ 6 to 12GHz; 1.35@ 12 to 18 GHz
SVWR Variation 0.03
Insertion Loss 0.25 dB@ 0 to 6GHz; 0.35dB@6 to 12GHz; 0.50dB @12 to 18GHz
Insertion Loss Variation 0.04dB
Phase, max
Peak power, max 1500W
Average power, max 200W@1 GHz; 30W@18GHz
Working Speed, max 100 RPM
Connector Type SMA Female (50Ω)
Contact Material Beryllium copper
Connector Material Stainless steel
Axial Load of End Surface, max ±2N
Radial Load of End Surface, max ±2N
Starting Torque 0.5Ncm, max
Working Torque 1Ncm, max
Weight 10g
Working Temperature -40~+70℃
Humidity 85%
Protection Grade IP40
Life 0.5 million revolutions


RF Rotary Slip Ring Main Application

  • Satellite ground station
  • Air traffic control radar
  • Military radar system
  • Video surveillance system
  • ECS


Outline Drawing

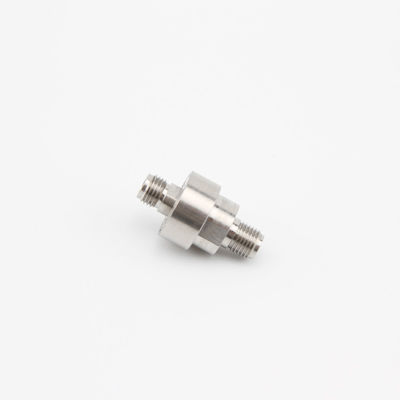

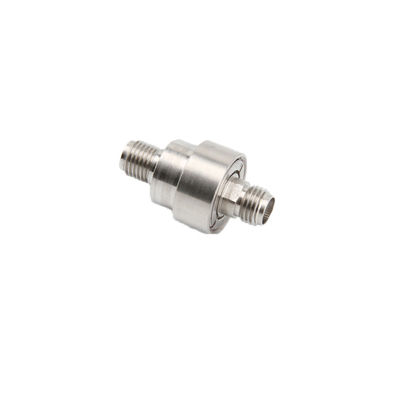

RF Rotary Slip Ring Product Display



Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.

Company Information

Other products

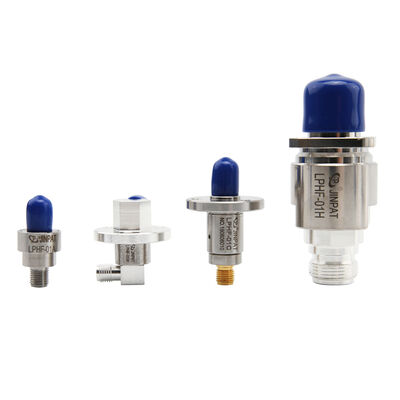

1 Channel HF Rotary Slip Ring 1500W 18 GHz Frequency With Stainless Steel Housing



What do we do?

We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.


How long have we been in the business?

JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.


Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.


Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.



The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.


For more information, please visit our official website: http://www.slipring.cn
