Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference

China Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference supplier
Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference supplier Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference supplier Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference supplier

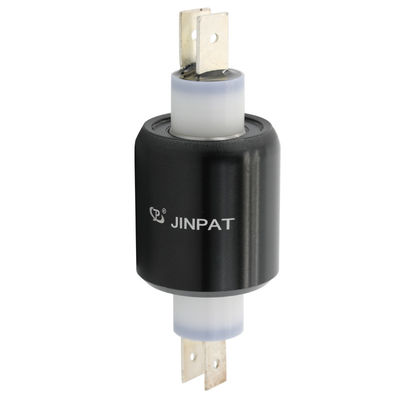

Large Image :  Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: A2H

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /Week
Contact Now
Detailed Product Description
Color: Silver And Black Poles: 2
Operating Speed: 0-2000rpm Working Temperature: -30℃~ +60℃
Voltage Rating: 250VAC/DC Or Higher Current Rating: 4A
Dielectric Strength: ≥500V@200Hz Between Each Circuit Electric Noise: ≤10mΩ

Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference



Quick Detail



The rotating electrical connectors are using the special insulation, sealing, and conductive technologies.



Mercury slip ring is a kind of mercury rotary joint that fluid medium is mercury and industrial components.


The biggest difference between mercury slip ring and traditional carbon brush slip ring is that it mainly for liquid silver as a conductive medium, rotate the fixed end and end together, when do not need to use the carbon brush for conductive transmission, and directly use mercury for conductive transmission.





All the types of our liquid metal rotary connectors support CE RoHS compliance.





Specifications



Specification
Poles 2
Operating Speed 0-1800rpm
Working Temperature -30℃~ +60℃
Electrical:
Voltage Rating 250VAC/DC or higher
Current Rating 30A
Dielectric Strength ≥500V@200Hz between each circuit
Insulation Resistance >25MΩ
Electrical Noise ≤10mΩ




Applications

  • Spinning LED signboard
  • Power connection
  • Resistors cutting machine
  • Speed dome camera
  • Package machine
  • Circa knitting machine
  • Robots
  • Medical Equipment
  • Cable wheel
  • Laminating machine




Feature and Advantage

  • NON – Mercury Slip Ring CE RoHS Meets Liquid Metal
  • Very low electrical noise
  • Very low contact resistance (Less than 1mΩ)
  • No maintenance and better reliability than traditional Slip rings
  • Suitable for signal and power transfer of rotating devices or instruments



Competitive Advantage

  • reliable
  • high precision
  • support epipodium
  • high current.
  • long lifetime

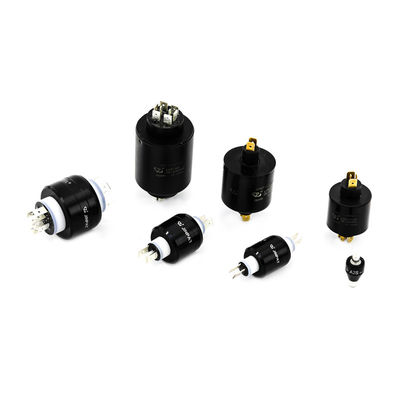

Product Display

Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference

Application Picture



Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference





Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.




Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference
Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference
Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference

PS:Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.

Electrical Connector Mercury Slip Ring Two Poles Rotary Swivel Joint And Anti-Interference

Frequently Asked Questions

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
