High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz

Good quality Capsule Slip Ring for sales
Good quality Capsule Slip Ring for sales
JINPAT Slip ring appearance is good, packing carefully, service enthusiasm, need to come again

—— William

Fast delivery, good performance and good quality, looking forward to the next cooperation.

—— Martin

I'm Online Chat Now

High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz

China High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz supplier
High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz supplier High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz supplier

Large Image :  High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPC-1C1202

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces a week
Contact Now
Detailed Product Description

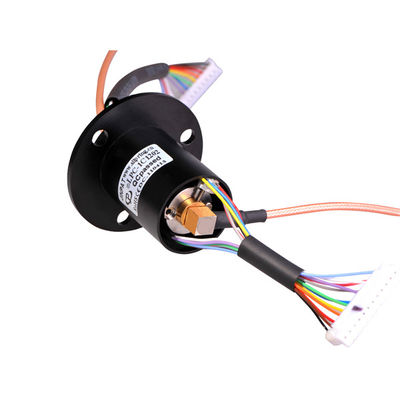

Capsule Length: 39.8 Mm Number Of Circuits: 12 Circuits
IP: 54 Or Higher Connector Model: SMA/BNC/TNC/SMB
Frequency Range: 50MHz To 3GHz; Contact Material: Gold-gold Contacts



Slip Ring RF Coaxial,High Frequency Signal Coaxial Connector 12 circuits slip rings



The LPC-1C1202-A slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve to 50MHz-3GHz. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPC-1C1202 provides smoother running, lower torque and lower electrical noise than competitive slip rings.



Circuits 12
Current Rating 2A
Voltage 240VAC
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Electrical Noise ≤50mΩ
Working Speed 0~50 RPM
Contact Precious metal
Housing Aluminum alloy
Working Temperature -20~+60℃
Humidity ≤60%RH
Wire specification AWG28#
Frequency Range DC~1.5GHz
Insertion loss <4dB
Protection Grade IP54
Product outline drawing
High Frequency Rotary Slip Ring 12 Circuits Transmitting Data Analog Signal Up To 40GHz



Features

  • 12 circuits
  • 2 amps per circuit, 240VAC/DC
  • Precision ball bearings meet or exceed life requirements for most commercial applications
  • Gold-gold contacts
  • Special slip ring with RF Coaxial Connector and high frequency
  • Compatible with data bus protocols
  • Sealed units are available
  • Transferring current and SDI signal
  • Flexible, color-coded, silver-plated, Teflon® UL lead wires
  • Transmitting analog and digital signals



Advantages

  • Transferring analog-digital SDI signal
  • Low torque minimizes system torque budget
  • Compact design to fit into the most demanding space
  • Smooth work with low electrical noise
  • Simplified system design and high performance
  • Quick shipment of urgent requirements
  • 360°continuous rotation
  • Lower electrical noise than competitive slip rings
  • High bandwidth transferring capability




Options


  • Placement of custom circuitry directly onto the unit
  • Custom mechanical integration features
  • Addition of special components
  • Inclusion of coaxial and miniature data bus cables



Main Application

  • Manufacturing and Process Control Equipment
  • High Definition Camera,
  • Indexing Tables. Closed-circuit Control
  • Shadowless Lamp, CT Machine, Fire Engine
  • Robotics, Rotary Sensors, Urgent Illume Equipment
  • Exhibit / Display Equipment.
  • Steering Wheel Racing Simulation
  • Aviation, Military, Medical EquipmentS
  • Mini-type Coiling Machine
  • Automatic Equipment / Robot / Spot Welding and Radar Antenna
  • CCTV pan / tilt camera mounts
  • Electrical Test Equipment
