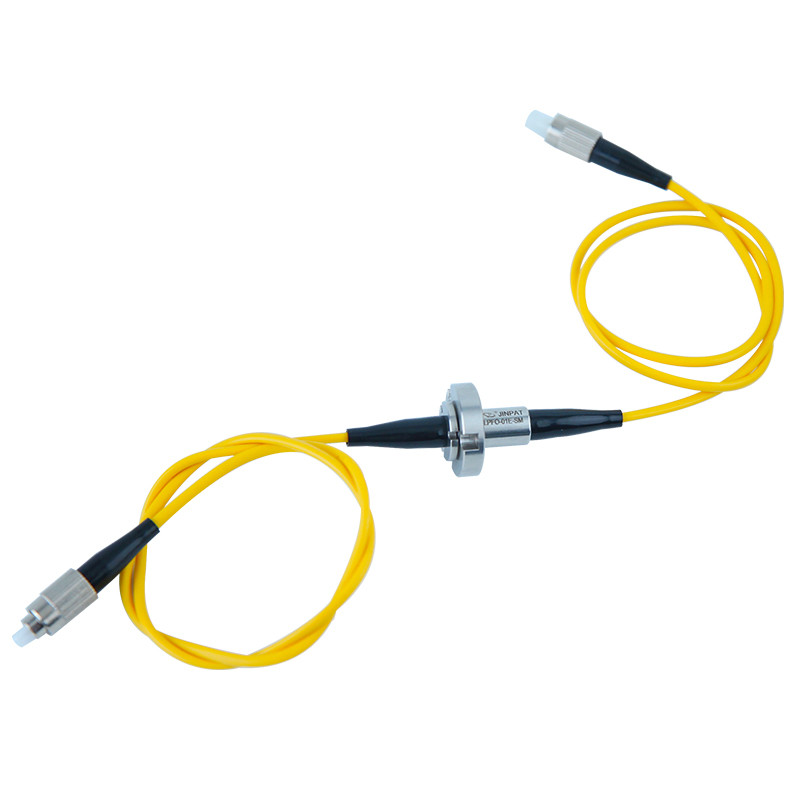

Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting

China Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting supplier
Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting supplier Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting supplier

Large Image :  Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPF0-01E

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Contact Now
Detailed Product Description
Voltage Rating: 240VAC/DC Total Circuits: 1 Circuit Fiber
Fiber Types: SM/MM Current Rating: 2A/ Circuit
Dielectric Strength: 500VAC@60Hz Insulation Resistance: 1000MΩ@500VDC
Application: Robotics Vehicles Lead Wire Size: AWG28 Silver Plated /300mm

Fiber Optic Rotary Joint Compact Hybrid Slip Ring Video Surveillance Transmitting Power And High Speed Data





Description



Hybrid Rotary Joint would be designed for the most demanding requirements and tested for that rugged environment and superb optical performance.



All of materials and components have been chosen to ensure the highest reliability in extreme conditions, including shock & vibration, working temperature, working humidity, and dust.



The design of LPF0 has proven performance records in both industrial and military applications. Also, the package can be configured to fit the customer’s specific requirements.

Hybrid Rotary Joint is available in single and multi-channel options. The most cost and size efficient options are the single and dual channel design.LPF0 has a variety of advantage compared to the traditional slip ring.To some extents, no leaks, long transmission distance, small size, lightweight.



If more than two fibers are in a system at present multiplexing solutions are available to combine multiple channels onto one or two fiber to allow the use of a one or two channels suitable for a harsh situation.



Main Application



◆  Vehicle Turrets

◆  Medical Systems

◆  Radar Antennas

◆  Robotics Vehicles

◆  Security Systems

◆  Material Handling Systems

◆  Sensor Platforms

◆  Remotely Operated Vehicles

◆  Video Surveillance Systems

◆  Fiber Optic Cable Reels

◆  Marine Population Systems

◆  Wind Energy Turbines



Features



◆ Ruggedized for harsh environments

◆ High return loss and low crosstalk

◆ Compact size and package

◆ High transmission rates and low resistance

◆ Variety of configuration options

◆ Custom designs available



Option



◆ Working in a high shock environment

◆ Exceed 100km fiber data connector

◆ Integrated power channel and signal channel

◆ Single channel design and Muti channel design

◆ Single mode or Multimode & Single channel or Multichannel



Specification
Wavelength 1550nm
Mode Single mode
Circuit Single channel
Working Speed >100 rpm
Insertion Loss <2 dB
Return Loss >54 dB
Thrust 12N
Connector Type FC
Working Temperature 0~50℃
Storage Temperature 0~80℃

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you recommendation or customization

Dimension

Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting


Application picture

Compact Hybrid Slip Ring Fiber Optic Rotary Joint Video Surveillance Transmitting

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you recommendation or customization
