6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel

China 6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel supplier
6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel supplier 6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel supplier 6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel supplier 6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel supplier

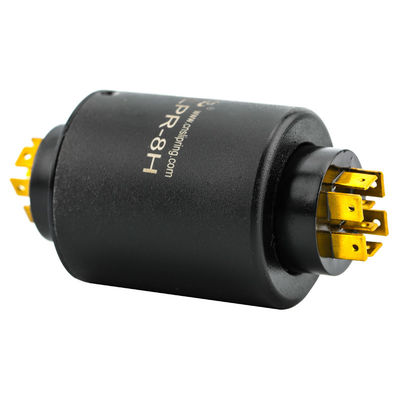

Large Image :  6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPR-8H

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /Week
Contact Now
Detailed Product Description
Circuits: 8 Operating Speed: 0-300rpm
Working Temperature: -20℃~ +60℃ Working Humidity: 60%RH Or Higher
Housing Material: Engineering Plastic Cable Length: 37mm
Dielectric Strength: ≥500 VAC @50Hz, Between Each Circuit Connecting Way: Silver Plated Pin

6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel
Description

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

LPR-8H  slip ring provides routing space for hydraulics, pneumatics or a concentric shaft mount. Typical use applications are video systems (CCTV), robotics, cable reels, medical equipment and packaging machines. It provides an economical, readily available solution.


Features

  • No mercury, environment-friendly design
  • Pins connector, convenient for installation
  • Speed up to 300 rpm continuous
  • Steel bearings and machined shaft and housing for harsh environment
  • Collar mounting is standard; flange mounting is optional
  • Continuous 360°rotation of power or data signals
  • Silver plated rings are standard. Gold plated optional.
  • Various lead exits are available
  • Sealed unit


Advantages

  • Fiber brush technology provides maintenance-free operation (no lubrication required)
  • Modular design meets special requirements through off-the-shelf manufacturing techniques
  • Customized configurations for your application


Main Application

  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Rotary index tables
  • Process control equipment
  • Heavy equipment turrets or cable reels
  • Exhibit Display machinery
  • Emergency lighting
  • Robotics Palletizing machines
  • Hot roller
  • Cable Reel
  • Medical equipment

Options


  • Placement of custom circuitry directly onto the unit
  • Custom mechanical integration features
  • Addition of special components
  • Inclusion of coaxial and miniature data bus cables
Specifications
Operating Speed0-300 rpm
Number of Circuits6
Voltage380 VAC/DC
Current Rating6 circuits 20A, 2 circuits 5A
Temperature Range-20℃ to +60℃
Contact MaterialPrecious metal
Connecting WaySilver plated pin
Housing MaterialEngineering plastic
Lead LengthsStandard 250 mm (9.843inch)
Dielectric Strength≥500 VAC @50Hz, between each circuit
Insulation Resistance1000 MΩ @ 500 VDC
Electrical Noise35ΩMin


Outline Drawing
6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel
Product Display
6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel
Application Picture
6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel
Cooperative Customer Case

6 circuits 20A, 2 circuits 5A Pin Connection Slip Ring of 8 Circuits 360° Rtating Transmission for Cable Reel
