2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt

China 2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt supplier
2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt supplier 2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt supplier 2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt supplier

Large Image :  2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPCC-02

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /Week
Contact Now
Detailed Product Description
Specific Impedance: 50Ω/75Ω Operating Speed: 0-100 Rpm
Working Temperature: -40℃~ +80℃ Working Humidity: 60%RH Or Higher
Contact Material: Gold To Gold Working Speed: 100rpm Max
Dielectric Strength: ≥1000V@50GHz Application: OEM Machinery

2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt





Description



RF Coaxial Connector refers to a device installed on the cable or instrument as transmitting or breaking the line of electrical connections. Also, it belongs to Mechanical & Electrical Integration product.





Contact part adopts rare metal and solid gold plating process, the slip ring of long wear-resisting and antioxidant properties, and ensure the slip ring long service life effectively.



The contact pairing material and its shape makes the signal transmission reliable and continuative even in the application where precision is required in the transmission of the signal



The Description of Coaxial Connector:
Working Temperature -40℃~ +80℃
Working Humidity 60%
Working Speed 100rpm max
Specific Impedance 50Ω/75Ω
Frequency Range DC-3GHz
Average Load Power

100W @ DC-2GHz

60W @ DC-3GHz

Insulation Resistance ≥100MΩ@500VDC
Dielectric Strength ≥1000V@50GHz
Insertion Loss <1.5dB@3GHz
VSWR 1.8 max
VSWR --WOW 0.1dB max
Phase-WOW
Pull Force 10N
Housing Material Brass/Zinc Plating
Cable Length 250mm
Cable Size TFLEX-405/RG316
Connector Type SMA/BNC/TNC/MCX
Contact Material Gold to Gold
IP IP40




Options

  • High Speed
  • Metal Housing
  • High Sealing Degree
  • Frequency Range
  • The Plug of End Lead Wire



Advantages

  • Low torque minimizes system torque budget
  • Compact design to fit into the most demanding space.
  • High bandwidth transfer capability
  • Low electrical noise
  • Quick shipment per your urgent requirement
  • Operating smoothly and reliability
  • Low resistance
  • Smooth running



Main Applications

  • Precise Instrument
  • Military Weapon System
  • Process control equipment
  • Indexing tables
  • CCTV pan / tilt camera mounts
  • Robotics
  • Exhibit/display equipment
  • Medical equipment
  • Aviation, instrument





Outline drawing


2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt
Product Display

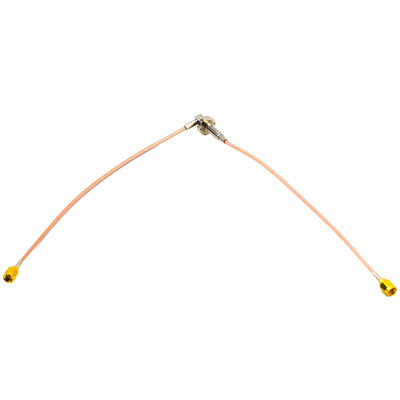

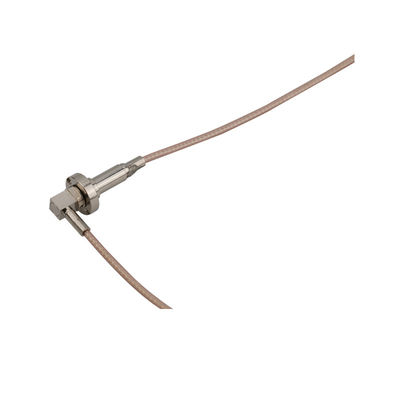

2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt



Application Picture


2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt




Cooperative Customer Case
2-Channel Slip Ring Coaxial Rotary Joint Operating Smoothly and Reliability for CCTV Pan Tilt

Company introduction
