IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals

China IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals supplier

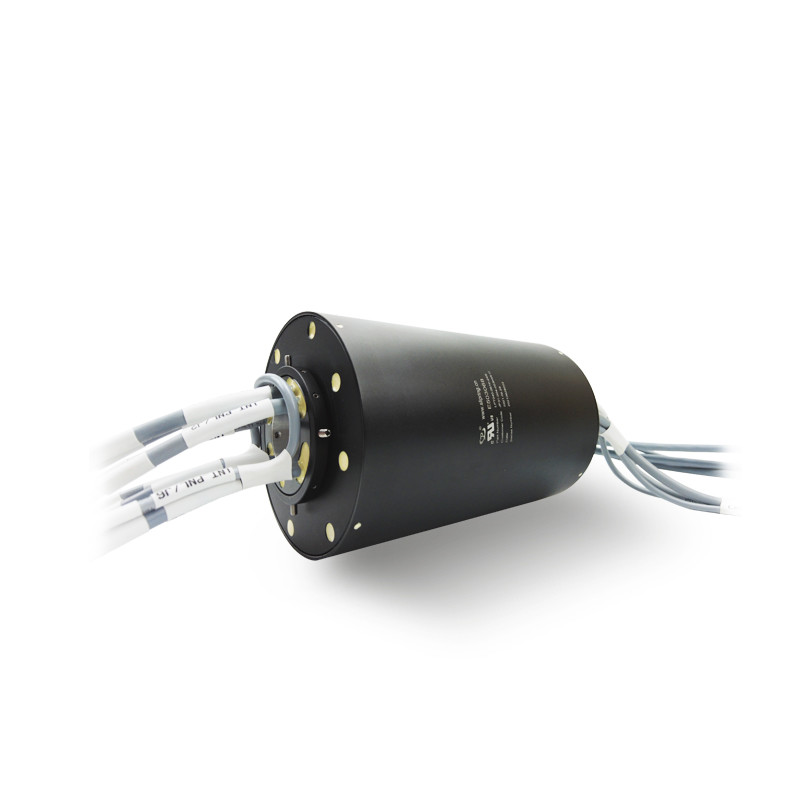

Large Image :  IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT040-0610-24S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /Week
Contact Now
Detailed Product Description
Circuits: 6 Circuits@8A; 24 Circuits@signals Voltage Rating: 800VDC/150VDC/24V/5VDC

JINPAT Through-Hole Slip Ring Transmitting 24 Circuits Signals



Description



The LPT040-0610-24S is an economical through-hole slip ring for a variety of signals and current mixed transmission. New innovative contact materials ensure long service life and extremely low-maintenance operation. Besides, the surfaces have been specially lubricated, thus allowing less friction and easy cleaning. It can be applied to various fields such as medical and lithium battery equipment.





Specifications
Working voltage 800VDC/150VDC/24V/5VDC
Working speed 0-250rpm
Circuits 6 circuits@8A; 24 circuits@signals
Contact Nobel Metal
Inner diameter Φ40mm
Working temperature 0℃ to +55℃
Electric noise Within 10 mΩ
Protection level IP54



Advantages and Optional



100 MB to 1 GBPS optional

The Ethernet standards and protocol requirements

RJ45 connector, CAT line is optional

Current and different signal transmission

Stable transmission, no packet loss, no string of code, return loss is small, low insertion loss

Hollow shaft larger than most holes can be designed to 80 mm



Applications



Automation equipment

Mechanical equipment

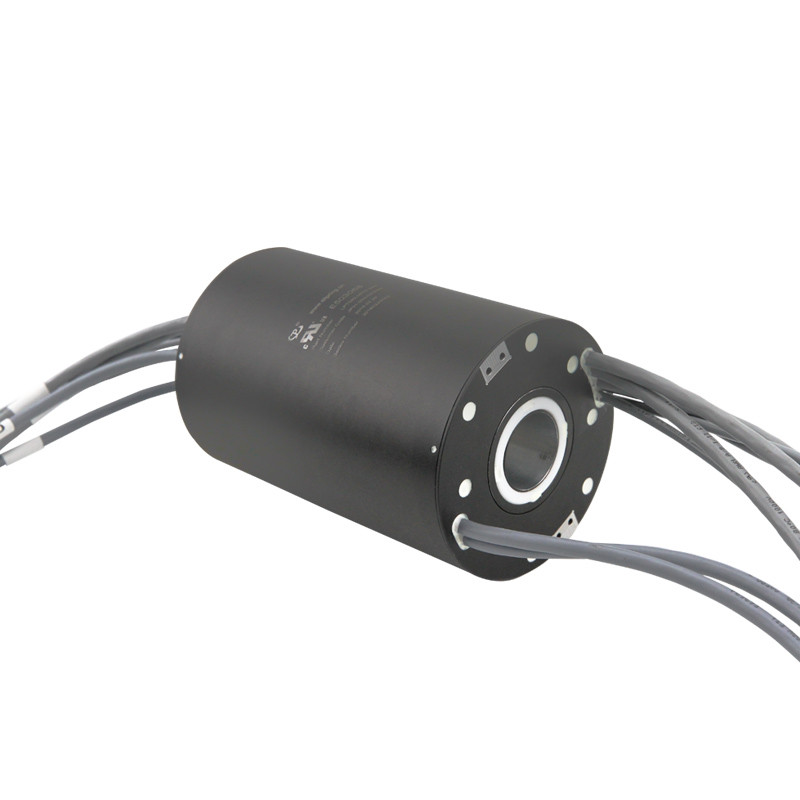

Product Picture

IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals





Company Introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.



IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals



PS:Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.



IP54 JINPAT Through Hole Slip Ring Hollow Shaft Transmitting 24 Circuits Signals



Frequently Asked Questions



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
