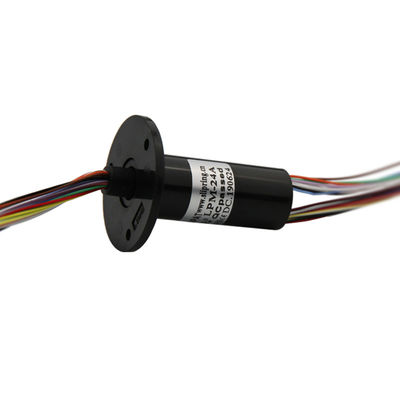

Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment

China Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment supplier
Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment supplier Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment supplier Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment supplier

Large Image :  Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPM-24A

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 100K units/week
Contact Now
Detailed Product Description
Circuit Number: 24 Working Speed: 0~300 Rpm
Current Rating: 1A Working Temperature: -20~+60℃

Description



The LPM-24A miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPM-24A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



Specification



Circuits 24
Current Rating 1A
Voltage 240VAC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54



Main Application

  • Electric devices
  • Medical facility
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment

Outline Drawing


Product Display




Capsule Industrial Slip Ring 24 Circuits 240VAC Long Life Low Torque For Electrical Test Equipment

Our Services

1 1000.jpg21000.jpg3 1000.jpg4 1000.jpg5  1000.jpg

Company Information









1.jpg2.jpg3 .jpg4 .jpg5 .jpg

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
