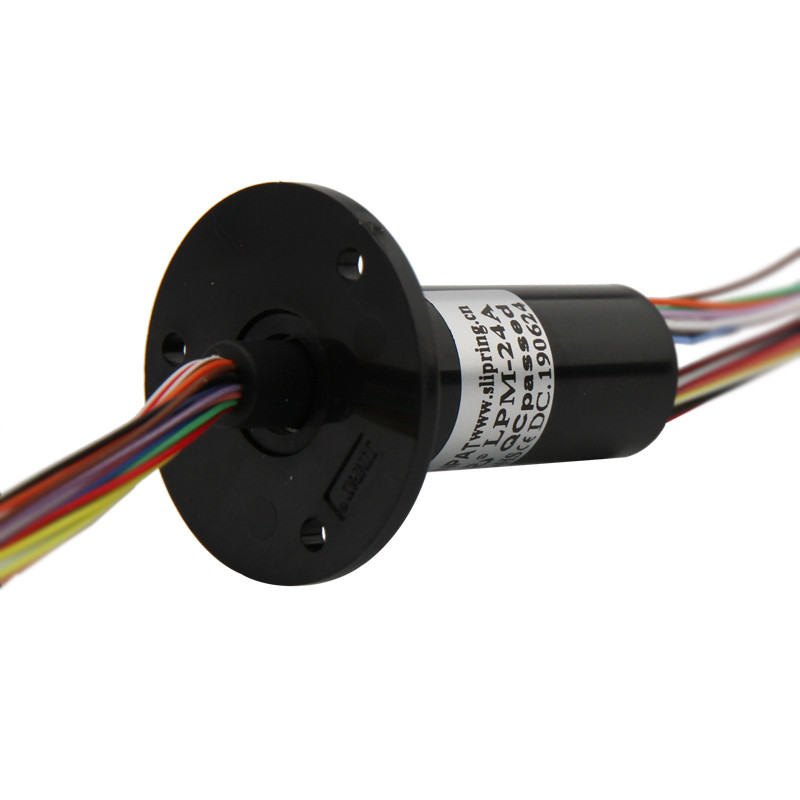

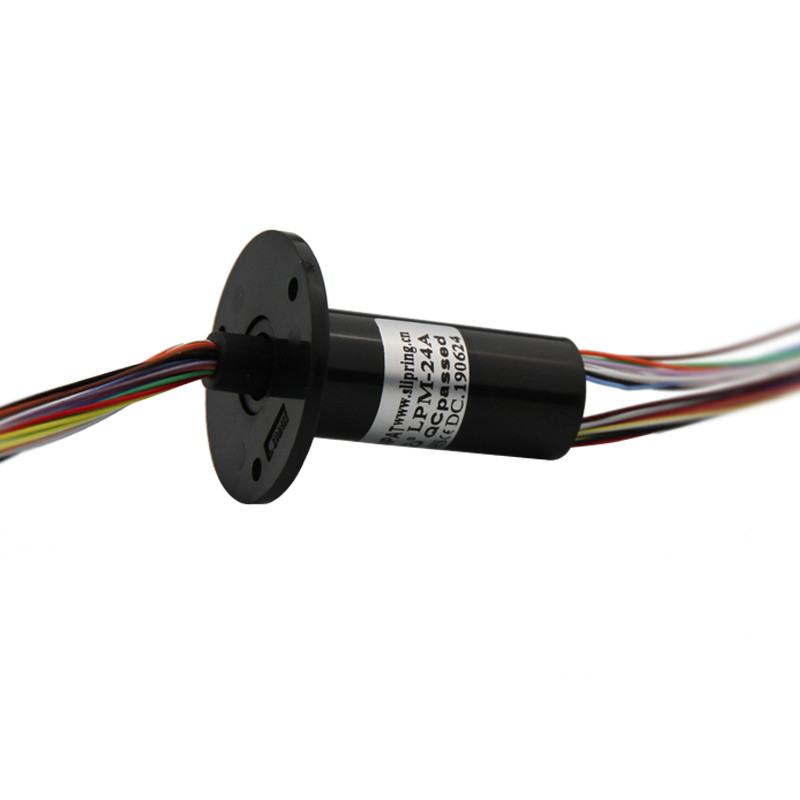

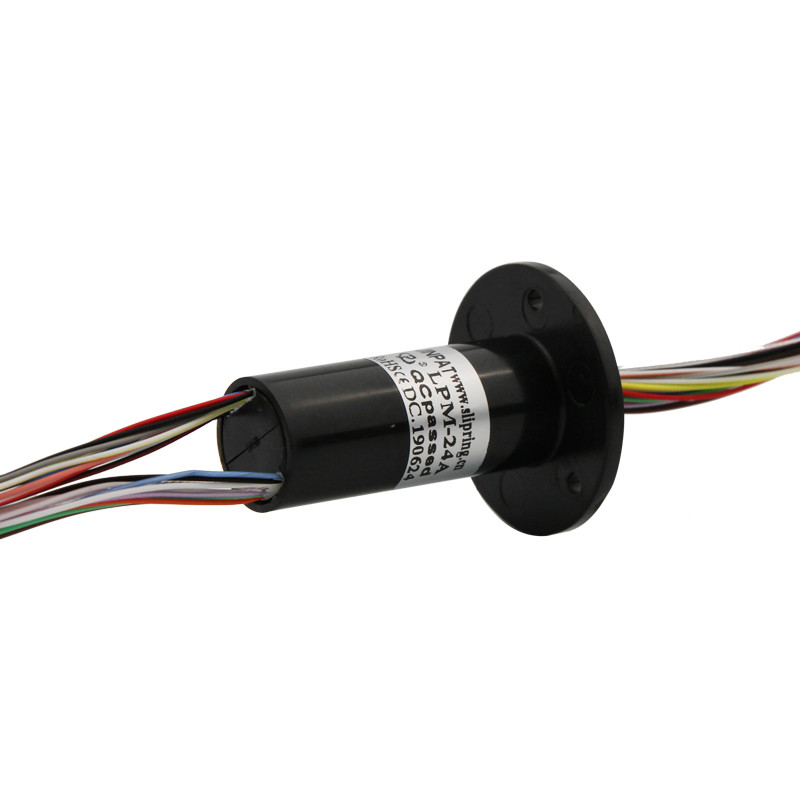

Capsule Industrial Slip Ring 24 Circuits 240VAC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuit Number | 24 | Working Speed | 0~300 Rpm |
|---|---|---|---|
| Current Rating | 1A | Working Temperature | -20~+60℃ |
| Highlight | rotating slip ring,miniature through bore slip ring |
||
Product Description
Description
The LPM-24A miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.
The LPM-24A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Specification
| Circuits | 24 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Wire Size | 30# silver plated copper UL, |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Outline Drawing
Product Display
