0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC

China 0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC supplier
0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC supplier 0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC supplier 0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC supplier

Large Image :  0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT012-1810

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 100K units/week
Contact Now
Detailed Product Description
Via Diameter: 12.7MM Number Of Circuits: 18
Working Speed: 0~300 Rpm

18 Circuits Through Bore Slip Ring with 10A Per Wire & 12.7mm ID Bore for Production Line Equipment



Specification



Type through bore slip ring
Number of circuits 18
Via diameter 12.7mm
Working speed 0~300rpm
Voltage 240VAC/DC
Contact Material precious metal
Insulation Resistance 500MΩ@500VDC



Quick detail



A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel.



A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



Benefits of product



  • Thru-shaft mounting
  • Can be designed to fit existing equipment
  • Combines power and control signals
  • No electrical noise (minimal contact
  • resistance
  • Zero maintenance
  • Environmentally sealed
  • Rugged design
  • High reliability
  • Unaffected by vibration
  • Mount in any orientation



Main application



  • Ultrasonic gages
  • Eddy current probes
  • AC/DC power
  • Servo & stepper control signals
  • Power input & temperature control of heated rollers
  • Instrumentation signals
  • Video signals
  • Communications
  • Digital data transmissions

Product outline drawing

0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC

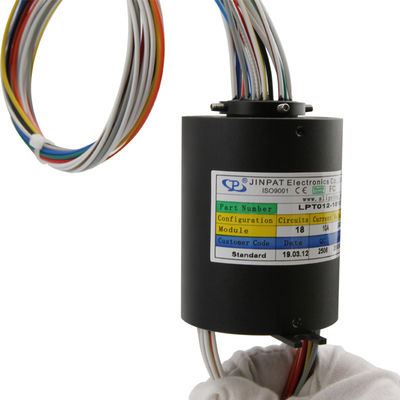

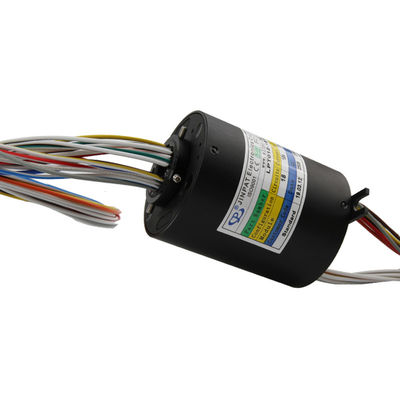

Product Image



0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC

0~300 Rpm Speed Through Hole Slip Ring 18 Circuits 10A Diameter 12.7mm 240AC



Our Services

1 1000.jpg21000.jpg3 1000.jpg4 1000.jpg5  1000.jpg

Company Information









1.jpg2.jpg3 .jpg4 .jpg5 .jpg

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
