70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits

China 70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits supplier
70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits supplier 70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits supplier

Large Image :  70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT070-0615

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 100K units/week
Contact Now
Detailed Product Description
Type: Through Hole Slip Ring Hole Size: 70 Mm
Number Of Circuits: 6 Circuits( 10 A Per Ring Current Or Routing Signal) Torque: Smaller Tan 9.25 (for Reference )

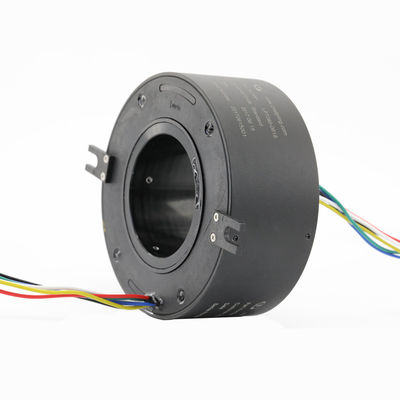

70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits



Along with the advance modern science and technology, the requirements for the types of slip ring becomes more and more diversification. The slip ring can not only transmit power signal, also need to transmit Frequency, Fiber optic, Gas, Fluid and hybrid model. JINPAT has the slip ring specialized in designing the fluid rotary joint to transmit kinds of fluid. The hydraulic part is protection class is IP65 or higher with the precious metal contact material.

The 70mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT070 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT070 features field serviceable brush blocks.

LPT070-0610 through bore slip ring features 6 wires and 10 A per ring ,it is sure that we can coustomize for you to routing to transmit Frequency, Fiber optic, Gas, Fluid etc.



Specification
Circuits 6circuits (1-24 circuits module optinal)
Operating Speed 0-400rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating

10A per circuit( 2A/5A/15A optinal)



Dielectric Strength ≥800V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electric Noise ≤30mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
  ≤9.25 g·m (for reference )
Protection IP44 or higher































































70mm Hore Size Design Through Bore Electrical Slip Ring 15A 38mm 6 Circuits



Advantage of JINPAT slip ring:



1. Compatible with the data bus protocol

2. Long lifetime, no need maintenance & lubrication

3. Rotating 360 degree to transmit power and signal and fluid

4. According to customer’s environmental conditions to design slip ring

5. Transfers control and data signals

6. Fiber brush technology provides maintenance-free operation (no lubrication required)

7. Modular design meets special requirements through off-the-shelf manufacturing techniques

8. Customized configurations for your application



Features



70 mm through-bore

Compact 135mm outside diameter

Modular design - a single module can have: one 50 amps ring; two 30 amps rings; one, two or three 10 amps rings or six 5 amps signals

Up to 20-50 amps circuits

Speeds up to 400 rpm continuous

Steel bearings and machined shaft and housing for harsh environments

Collar mounting is standard; flange mounting is optional

Various lead exits are available

Silver plated rings are standard. Gold plated optional.

Continuous 360o rotation of power or data signals

Sealed unit
