High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring

  • High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring
  • High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT000-0410-0602-HF01
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Total 11 CKT Rating Voltage 380VAC
Interface Type SMA-K Dielectric Strength 1000VAC@50Hz
Housing Material Aluminum Alloy Lead Wire Length Rotor:300mm
High Light

High Frequency Rotary Electrical Joint

,

Rotary Electrical Joint IP54

,

10A Electric Slip Ring
Product Description

High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring

JINPAT radar moving mid-pass antenna slip ring supports mixed transmission of multiple signal currents, and supports multi-channel high-frequency rotary joint integration. The outlet end can be welded with aviation plug.



Electronic & Electruc Mechanical
Circuits Total 11CKT Working Speed 0~80rpm
Detail 4X10A+6X2A Inner Diameter /
Rating Voltage 380VAC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:Aviation plug

Rotor:500mm
Environment Remarks
Working Temperature -40°C~+60°C Application /
Working Humidity ≤60%RH Other /
IP IP54 Note:"P" stands dor power, "S" stands for signal



High frequency electric slip ring outline drawing



High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring 0



Main Application

  • Electric devices
  • Motor equipment
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment

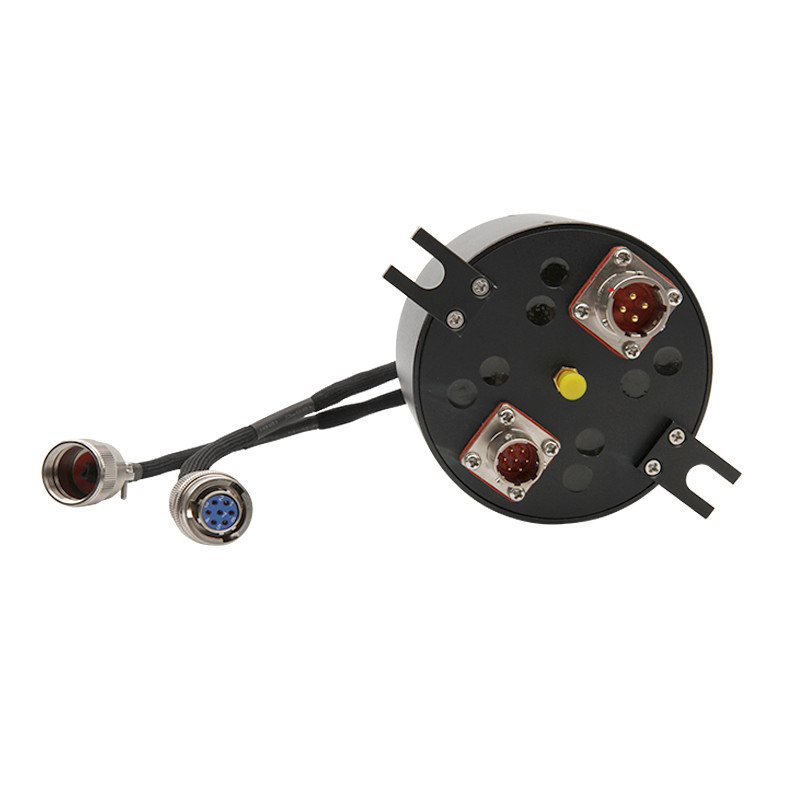

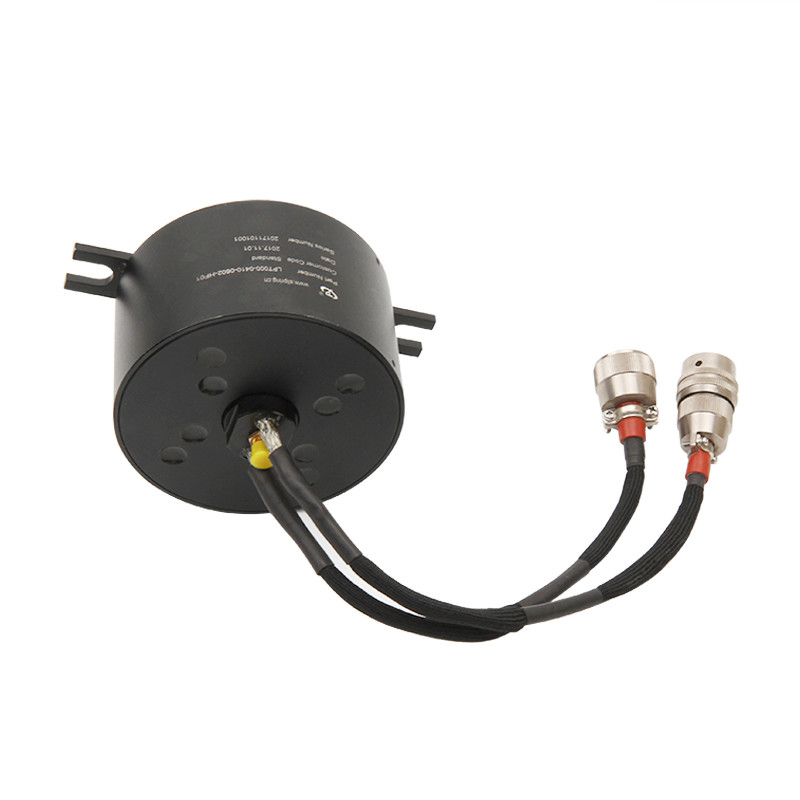

High frequency electric slip ring picture



High Frequency Rotary Electrical Joint IP54 4 Circuits 10A Electric Slip Ring 1
