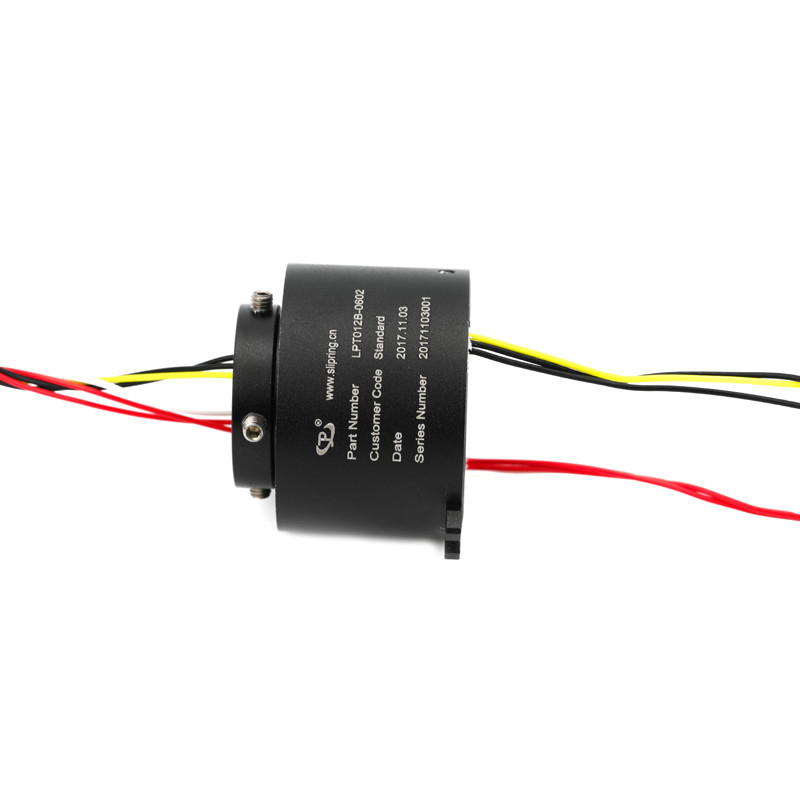

High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed

China High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed supplier
High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed supplier High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed supplier

Large Image :  High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT012B-0602

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 1000 units/week
Contact Now
Detailed Product Description
Circuits: 6 Circuits Operating Speed: 0-300rpm
Working Temperature: -20℃~ +60℃ Working Humidity: 60%RH Or Higher
Contact Material: Precious Metal Lead Wire Length: Standard 300mm (11.811inch)
Dielectric Strength: ≥1000V@50Hz Between Each Circuit Protection: IP54 Or Higher

Compact-Designed φ12mm Hole Slip Ring of 6 Wires 2A Per Wire for High Speed Drome



LPT012B Series Slip Ring Through Bore 12.7mm



Description



The LPT012A provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines.



The slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.





Specification
Circuits 1-12circuits
Operating Speed 0-300rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating 2A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise 1mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Size AWG26
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54 or higher




Features



◆ Precious metal contacts

◆ 2 amps rings

◆ Precision ball bearings for long life

◆ Speed up to 300 rpm continuous

◆ Compact size

◆ Sealed units available

◆ Flying Leads

◆ Fully compatible with both analog and TTL control level signals

◆ Rugged black anodized aluminum construction



Advantages



Unique signal handling performance with minimal electrical circuit noise

Compact design to fit in the most restrictive space

Low torque minimizes system torque budget

Rapid delivery


Main Applications



  • Packaging/wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit Display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
  • Emergency lighting
  • Robotics Palletizing machines,
  • Heavy equipment turrets or cable reels



 Outline Drawing


High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed


Application Picture(robotic toys)


High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed



Factory workshop



High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed

High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed






High Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact DesignedHigh Speed Drome Through Hole Slip Ring 6 Circuits 12mm Hole Compact Designed





Company introduction



JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.



It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.



Frequently Asked Questions



What do we do?

We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.



How long have we been in the business?

JINPAT has been in slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.



Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could ve very serious.



Notes:


The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.


If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
