Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material

China Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material supplier
Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material supplier Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material supplier Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material supplier Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material supplier

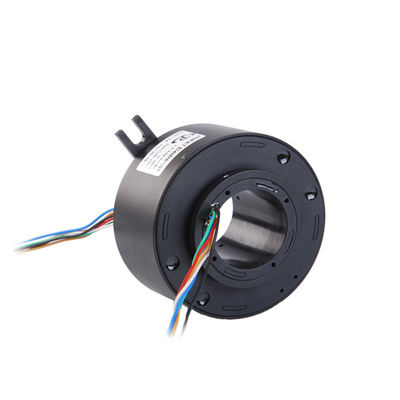

Large Image :  Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT080 series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 1000 units/week
Contact Now
Detailed Product Description
Circuits: 1-24 Circuits Operating Speed: 0-500rpm
Working Temperature: -20℃~ +60℃ Working Humidity: 60%RH Or Higher
Contact Material: Precious Metal Lead Wire Length: Standard 300mm (11.811inch)
Dielectric Strength: ≥1000V@50Hz Between Each Circuit Housing Material: Aluminum Alloy


Hollow Shaft Slip Ring with 80mm Hole Diameter & Flexible Circuit Number for Industrial Use



Description


A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. It can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

The LPT080 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

It can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.


The 80mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount.


Quick detail


Specification
Circuits 1-24 circuits
Operating Speed 0-500rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 1000MΩ@ 500VDC
Electric Noise ≤1mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54 or higher
L---The length of through bore slip ring(mm)
Part Number Current/Circuit 6 circuits 12 circuits 18circuits 24 circuits
LPT080(Inner diameter80mm) 5A 61 85 129 133
10A 64 91 118 145
15A 67 97 127 157



Features


◆ 80 mm through-bore

◆ Compact 160mm outside diameter

◆ Up to 20-50 amps circuits

◆ Speeds up to 500 rpm continuously

◆ Steel bearings and machined shaft and housing for harsh environments

◆ Collar mounting is standard; flange mounting is optional

◆ Various lead exits are available

◆ Silver plated rings are standard. Gold plated optionally.

◆ Continuous 360o rotation of power or data signals

◆ Sealed unit


Advantages

  • Transfers control and data signals
  • Power and signal mixed
  • Modular design meets special requirements through off-the-shelf manufacturing techniques
  • Customized configurations for your application
  • Rapid delivery
  • Smooth running
  • Low resistance
  • High stability
  • Anti-interference design


Main Applications

  • Industrial machinery
  • Exhibit Display machinery
  • Medical equipment
  • Rotary index tables
  • Robotics Palletizing machines,
  • Heavy equipment turrets
  • Shadowless Lamp
  • Cable Reels


Outline Drawing

Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material

Product Display

Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material

Application Picture
Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material

Company Profile

Industrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact MaterialIndustrial Through Hole Slip Ring Hollow Shaft 80mm Hole Dia Precious Metal Contact Material





Company introduction



JINPAT has technological in advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.



Frequently Asked Questions



What do we do?

We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.



How long have we been in the business?

JINPAT has been in slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.



Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could be very serious.



Notes:


The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.


If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
