Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing

China Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing supplier
Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing supplier Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing supplier Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing supplier Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing supplier

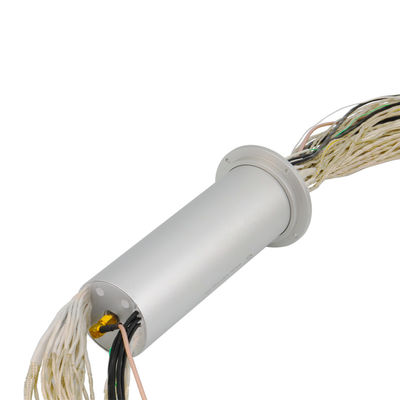

Large Image :  Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPC-55T-HF01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /Week
Contact Now
Detailed Product Description
Voltage: 240 VDC/AC Contact Material: Gold To Gold
Number Of Circuits: 25 Circuits / 30 Circuits

Electrical Slip Ring Integrating with HF Rotary Joint with Multiple Contacts and Customizable Housing



Description


An LPC-55T-HF01 slip ring is a special unit with RF Coaxial Connector. Color-coded lead

wires are used on both the stator and rotor to simplify electrical connections.



This series of the product can transmit 25 circuits @1A And 30 circuits @5A. And it consists of the high-frequency slip ring and high frequency and electric hybrid slip ring. At present, it has been applied in radar antenna and military equipment. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.



Options



Number of circuits

High-frequency range

Voltage and current rating



Features



Transmitting 25 circuits @1A And 30 circuits @5A current

Compact structure and strong anti-resistance capacity

Flexible, color-coded, silver-plated, lead wires

Addition of special components

The inclusion of coax and miniature data bus cables


Advantages


Low torque minimizes system torque budget
Compact design to fit in the most demanding space.
Smooth running
Low electrical noise
Quick shipment per your urgent requirement
360°continuous rotation
High bandwidth transfer capability



Product Display

Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing

Product Application



Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing



Testing lab

Electrical Slip Ring Integrated with HF Rotary Joint with Multiple Contacts and Customizable Housing





Company introduction



JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment and high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
