Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals

China Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals supplier
Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals supplier Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals supplier

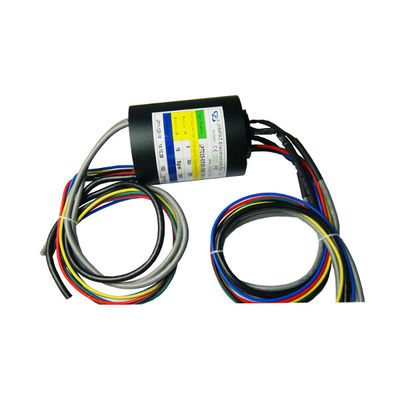

Large Image :  Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT025-0530-08E-08E-04S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 1000 units/week
Contact Now
Detailed Product Description
Voltage Rating: 220VAC/DC Or Higher Operating Speed: 0-500rpm
Current Rating: 5circuit@30A

Through Hole Slip Ring Transmitting 5 circuits @30A and Ethernet & Common Signals



Description


The LPT025 provides an economical, readily available solution when a compact through-bore
configuration is required. This unit provides a 25.4mm through-bore for routing hydraulic or
pneumatic lines and a compact 86mm outside diameter for minimal space applications.



This series of products can transmit 5 circuits@30A and 16 circuits for transmitting signals in

360-degree continuous rotation.



Features



Precious metal contacts
5 amps rings
Precision ball bearings for long life
Speed up to 500 rpm continuously
Compact size
Sealed units available
Flying Leads
Fully compatible with both analog and TTL control level signals




Advantages



Unique signal handling performance with minimal electrical noise
Compact design to fit in the most demanding space constraints
Low torque minimizes system torque budget
Rapid delivery




Options


Inner diameter, outer diameter, length
Working speed
Number of circuits
Current and voltage
Protection grade
Can transmit signal and power solely or together



Product Application

Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals

Company Profile

Compact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common SignalsCompact Size Through Hole Slip Ring 5 Circuits Transmitting Ethernet Common Signals



Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.

Frequently Asked Questions

What do we do?
We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.

How long have we been in the business?
JINPAT has been in slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.

Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.

Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could be very serious.


Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
