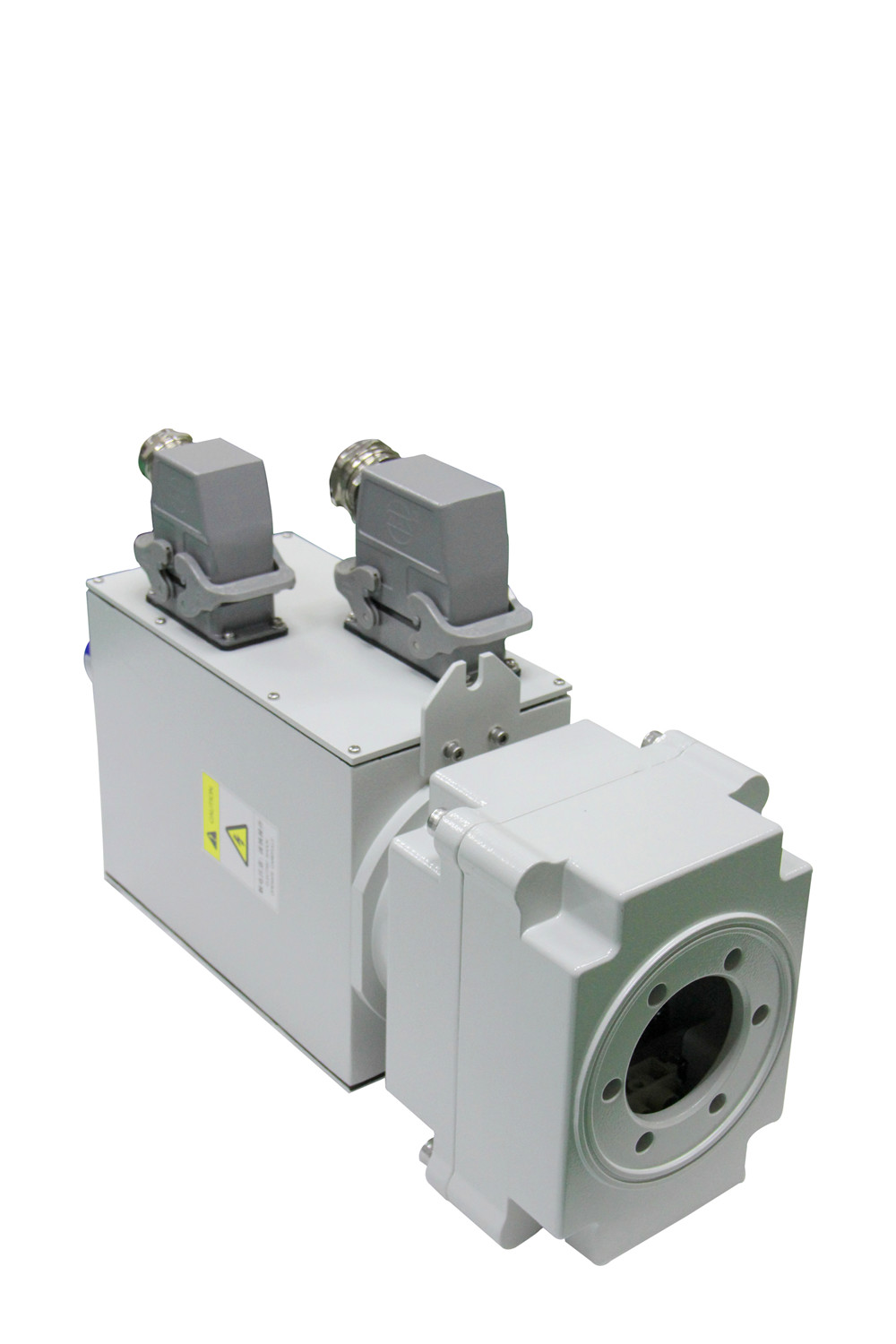

Wind Turbine Slip Ring 5 Circuits 60A 400VAC IP65 Transimt Control Communication Signals
Product Name | Wind Turbine Slip Ring | Number Of Circuits | 5 Circuits(power)+26 Circuits(signal) |
---|---|---|---|
Operating Speed | 0~25RPM | Housing Material | Aluminum Alloy Blasting |
Protection Grade | IP65 | Torque | 1N·M |
Protection Class | IP65 | ||
High Light | rotary joint slip ring,miniature through bore slip ring,60A through bore slip ring |
Variable Propeller Signal Wind Turbine Slip Ring Transmit Control And Communication Signals
Description
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation.
This product can transmit 5 circuits@60A current and 26 circuits signals. It provides power supply, transmits control signal and communication signal for pitch system. It adopts imported metal brush to ensure long life. And it has a constant temperature and can change heater at times.
Features
This series of slip ring provide power supply, transmit control signal and communication signal for pitch system.
The imported metal brush ensures long life.
Automobile temperature adjustment function according to different environment
Its speed measuring device can strengthen the speed monitoring of fan and the safety protection of fan.
Outlet way: Rotor side connection; stator side connection
Advantage
- High protection grade
- Transmitting signals and anti-interference
- Equipped with speed supervisory control
Specification
Number of Circuits | 5 circuits(power)+26 circuits(signal) | Current | 5 circuits@ 60A, 26 signals |
Voltage Rating | 400VAC(power),24VDC(signal) | Operating Speed | 0~25RPM |
Working Temperature | –40°C~+80°C | Scope of application | 1.25~2.5MW |
Housing material | Aluminum alloy blasting | Torque | 1N·M |
Working life | About 220 million RPM(According to the working environment) | Contact material | Precious metal |
Dynamic resistance fluctuation | ≤10mΩ(at 50rpm) | Protection Class | IP65 |
Pressure strength | ≥500V@50Hz(power) ≥300VAC@50Hz(signal) |
Lead Size | AWG6#/AWG12#/AWG16#/AWG17# AWG22#/CAN-Bus/CAT5 |
Insulation Resistance | 500MΩ@500VDC(power) 100MΩ@100VDC(signal) |
Working Humidity | 0~100%RH |
Product display
Application Picture
