Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals

China Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier
Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals supplier

Large Image :  Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPTS000-0340-1305

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 100 units/week
Contact Now
Detailed Product Description
Type: Through Bore Slip Ring Number Of Circuits: 16
Current Rating: 3 Circuits@40A, 13 Circuits@5A Feature: Customized
Color: Silver White Application: Crane

Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals





Description



Slip rings can provide continuous or intermittent rotation while transmitting power and data - simplifying operation, improving application performance, and eliminating the risk of damage to wiring between movable parts.



Slip ring as a rotating hub, to ensure the crane move up and down normally. However, it is different for the light-duty crane and heavy duty crane for the requirements of the slip ring.





Specification
Circuits 16 circuits
Operating Speed 0-100rpm
Working Temperature -30℃~ +70℃
Working Humidity ≤60%RH
Electrical:
Voltage Rating 3 circuits@40A, 13 circuits@5A
Dielectric Strength ≥500V@50Hz
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise ≤70mΩ Min
Mechanical:
Contact Material Precious metal
Housing Material Stainless Steel
Via Diameter 200mm
Protection IP65



Features



a.Transmit analog signal, digital signal, touch signal, communication signal, telling-signal and so on with low transmission loss at the same time.

b. High protection grade (IP65)

c. Low and high-temperature resistant, salt fog-proof, shock resistant, high pressure resistant.

d. Reliable capacity, long lifetime, easy to maintain

e. Isolation is larger than 60dB



Competitive Advantage



reliable
high precision
support epipodium
high current.

long lifetime





Options



●Outside diameter
●Circuits
●Loading of each circuit
●Wire length
●Different signal compatible
●Working speed



Main Application

  • Wind Energy Turbines
  • Fiber Optic Cable Reels
  • Medical Systems
  • Robotics Vehicles
  • Security Systems
  • LED lights on the playground equipment

Product display

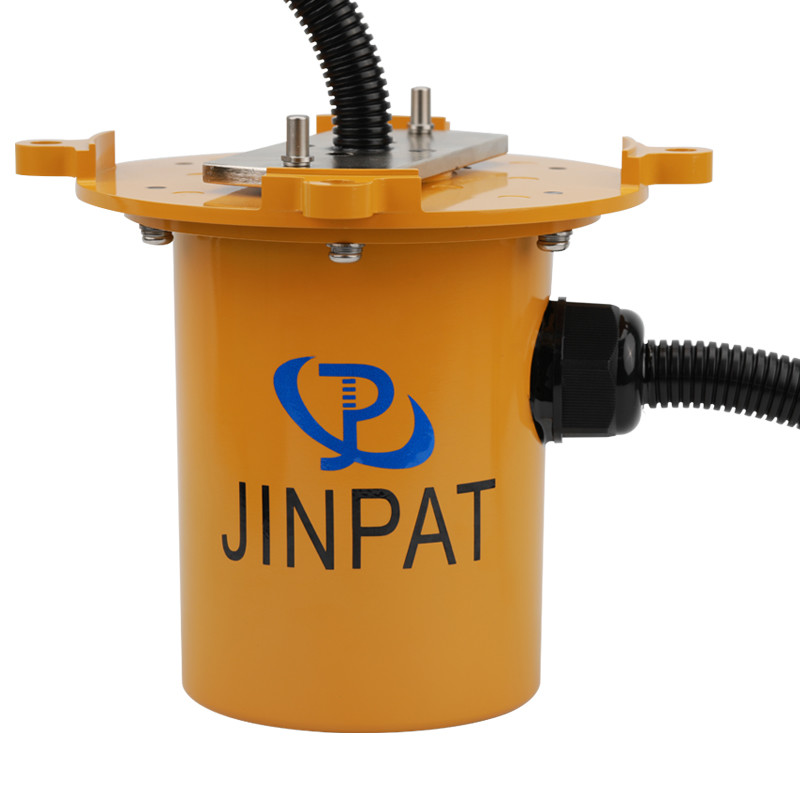

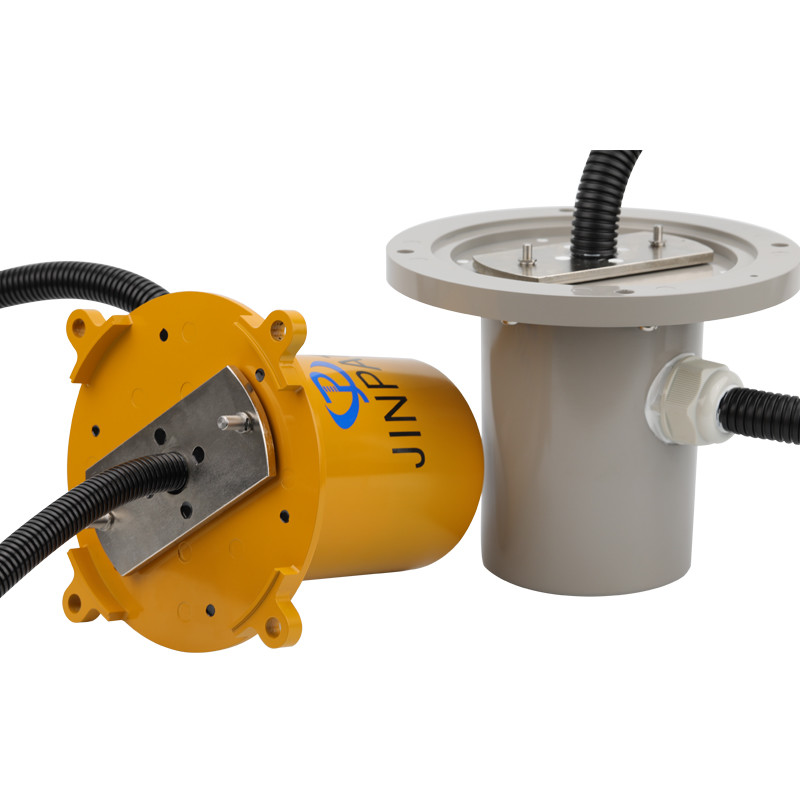

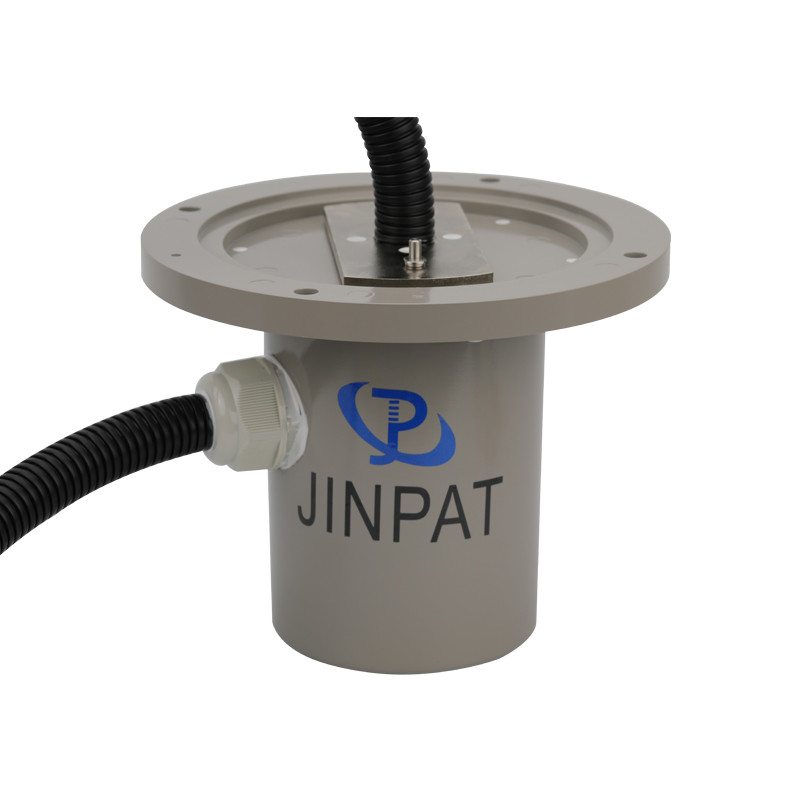

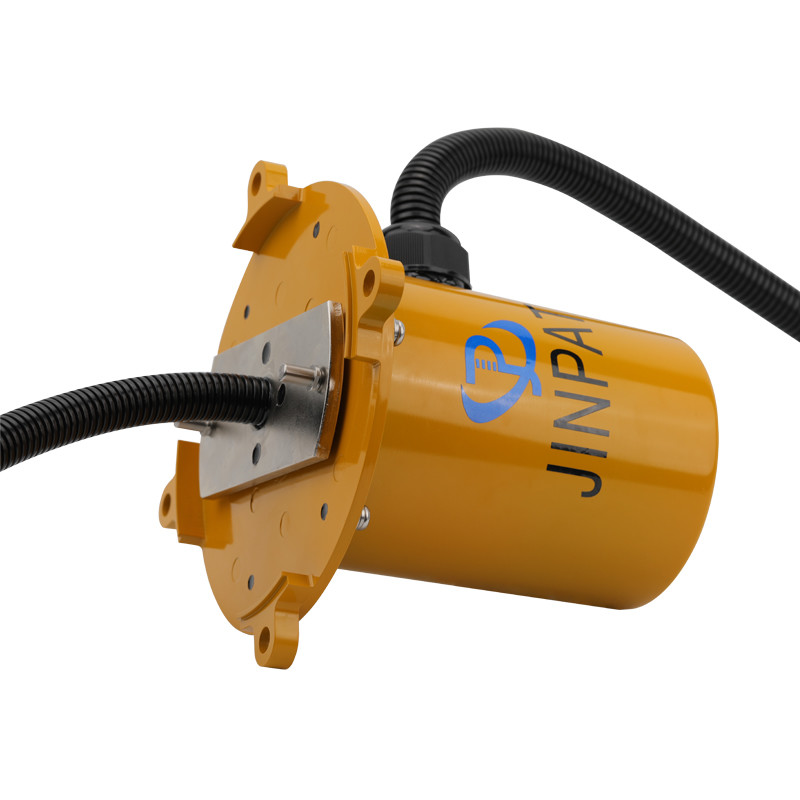

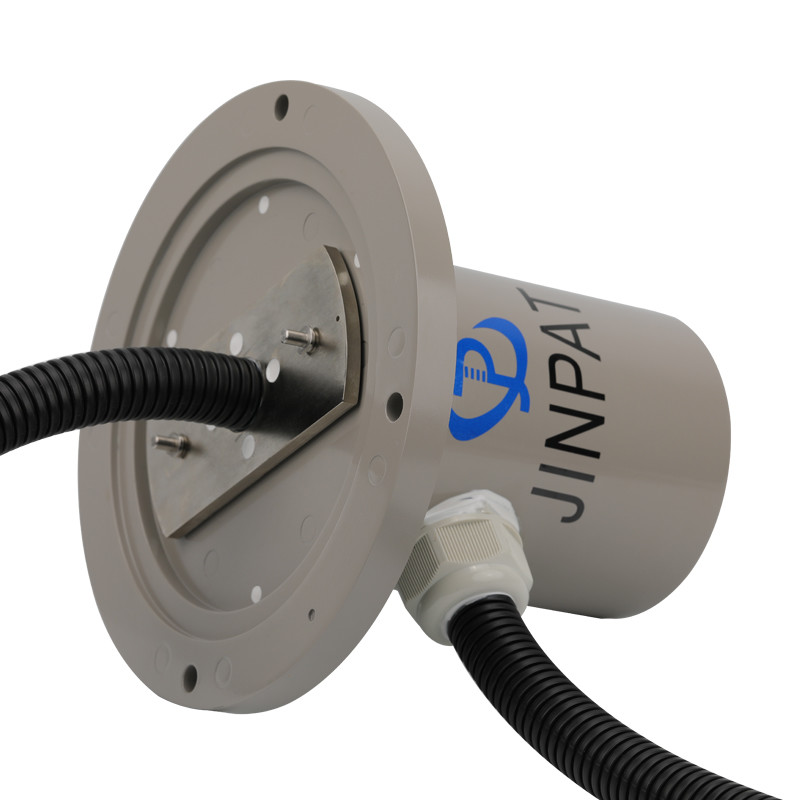

Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals

Application Picture

Large Current  IP65 Crane Through Bore Slip Ring Transmitting Various Signals





Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.
