Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device

China Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device supplier
Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device supplier Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device supplier Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device supplier

Large Image :  Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPR series

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 500 pieces /week
Contact Now
Detailed Product Description
Number Of Circuits: 4 Poles Gold Contact Precision: High Precision
Protection Grade: IP54 Or Higher Application: Flow-line Equipment
Working Life: Long Outer Surface Material: Gold Coating

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device


Description

This series of compact slip ring is 4 poles models and adopts gold contact. The most important parameter lies in low friction coatings. It replaces wires with a pin which meet RoHS environmental requirements.



Specifications
Operating Speed0-300 rpm
 Circuits6
Voltage380 VAC/DC
Current Rating2 circuits 5A, 4 circuits 15A
Temperature Range-20℃ to +60℃
Contact Precious metal
Connecting WaySilver plated pin
Housing MaterialEngineering plastic
Lead LengthsStandard 250 mm (9.843inch)
Dielectric Strength≥500 VAC @50Hz, between each circuit
Insulation Resistance1000 MΩ @ 500 VDC
Electrical Noise1mΩMin



Features
Affordable price
Quality guaranteed within 1 year
Response within 24 hours
Prompt delivery, normally 2~3 weeks
Reliable package & shipment ,by DHL, UPS or FedEx
Flexible & quick customization


Advantages

High precision
Epipodium support
High current.
Long lifetime


Options

Circuits
Loading of each circuit
Wire length
Inner hole /outer hole diameter or length
Higher IP grade
Working speed

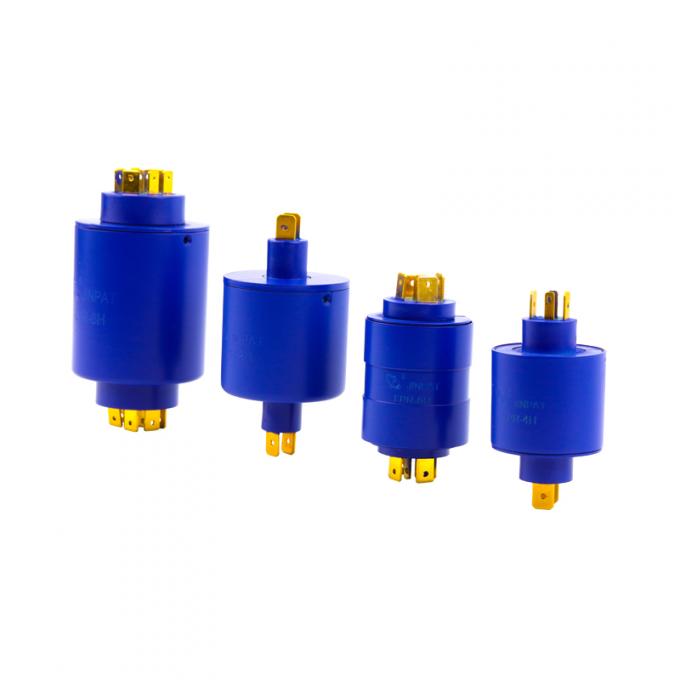

Product Display

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device

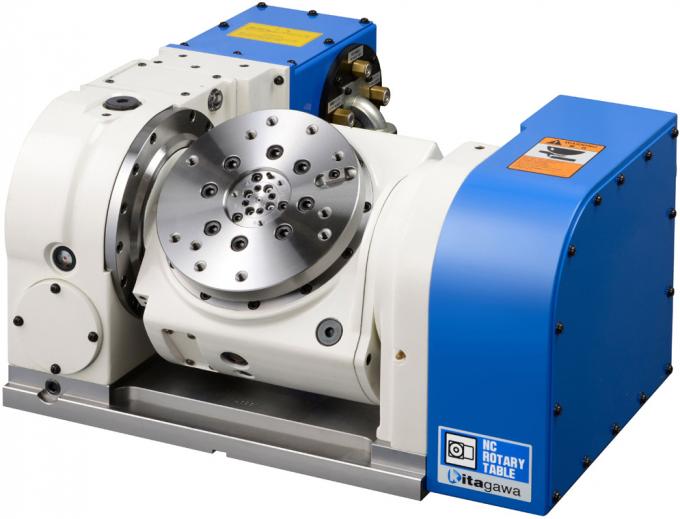

Application

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device


Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device

PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device

Frequently Asked Questions

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
