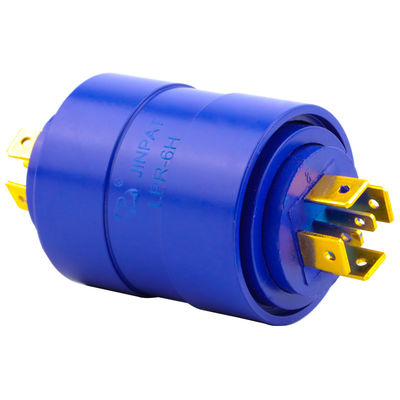

Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer

  • Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer
  • Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer
  • Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer
  • Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPR series
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 4 Poles Gold Contact Precision High Precision
Protection Grade IP54 Or Higher Application Flow-line Equipment
Working Life Long Outer Surface Material Gold Coating
Highlight

gold coating Pin Slip Ring

,

1000M ohm Pin Slip Ring

,

IP54 Non Mercury Slip Ring
Product Description

Electrical Pin Slip Ring With a Insulation Resistance of 1000 MΩ @ 500 VDC for Testing Device


Description

This series of compact slip ring is 4 poles models and adopts gold contact. The most important parameter lies in low friction coatings. It replaces wires with a pin which meet RoHS environmental requirements.


Specifications
Operating Speed 0-300 rpm
 Circuits 6
Voltage 380 VAC/DC
Current Rating 2 circuits 5A, 4 circuits 15A
Temperature Range -20℃ to +60℃
Contact  Precious metal
Connecting Way Silver plated pin
Housing Material Engineering plastic
Lead Lengths Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Features

  • Affordable price
  • Quality guaranteed within 1 year
  • Response within 24 hours
  • Prompt delivery, normally 2~3 weeks
  • Reliable package & shipment ,by DHL, UPS or FedEx
  • Flexible & quick customization


Advantages

  • High precision
  • Epipodium support
  • High current.
  • Long lifetime


Options

  • Circuits
  • Loading of each circuit
  • Wire length
  • Inner hole /outer hole diameter or length
  • Higher IP grade
  • Working speed


Product Display

Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer 0

Application

Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer 1


Company Introduction
JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.

Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer 2

PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.

Electrical Pin Slip Ring 1000M ohm 500 VDC Non Mercury Slip Ring Manufacturer 3
