300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control

China 300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control supplier
300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control supplier 300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control supplier 300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control supplier

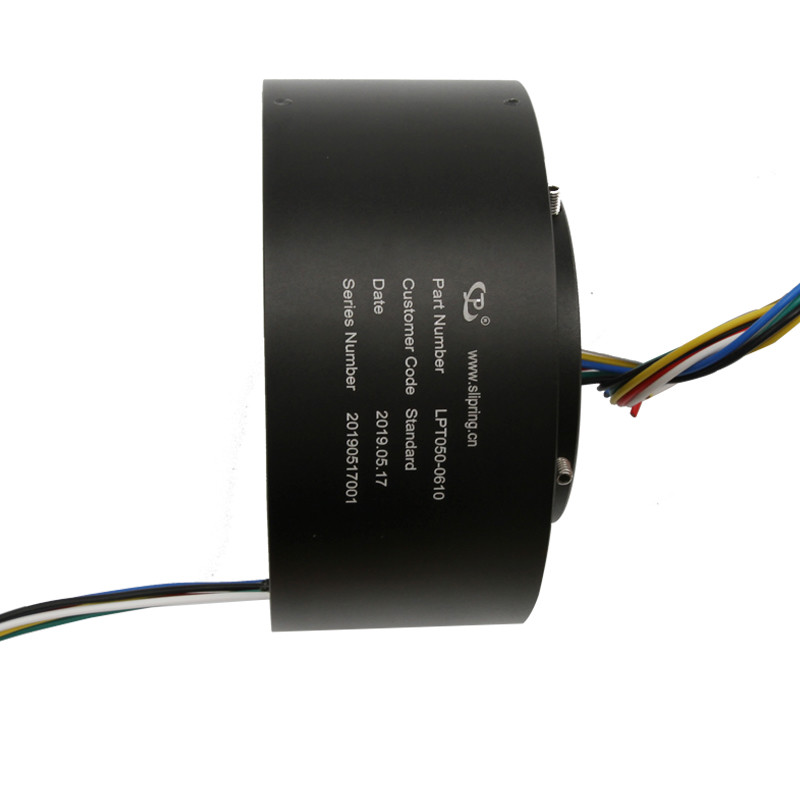

Large Image :  300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT050 -0610

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 100K units/week
Contact Now
Detailed Product Description
Feature: Remote Control Maximum Speed: 300rpm
Assembly Situation: Ready To Go

The 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT050 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Features

  • 50 mm through-bore
  • Compact 119mm outside diameter
  • Modular design - a single module can have: one 50 amps ring; two 30 amps rings; one, two or three 10 amps rings or six 5 amps signals
  • Up to 20-50 amps circuits
  • Speed up to 400 rpm continuous
  • Steel bearings and machined shaft and housing for harsh environment
  • Collar mounting is standard; flange mounting is optional
  • Various lead exits are available
  • Silver plated rings are standard. Gold plated optional.
  • Continuous 360°rotation of power or data signals
  • Sealed unit


Main Application

  • Packaging / wrapping machinery
  • Semiconductor handling systems
  • Industrial machinery
  • Exhibit Display machinery
  • Medical equipment
  • Rotary index tables
  • Process control equipment
  • Emergency lighting, robotics Palletizing machines,
  • Heavy equipment turrets or cable reels


Advantage

1. Transfers control and data signals
2. Fiber brush technology provides maintenance-free operation (no lubrication required)
3. Modular design meets special requirements through off-the-shelf manufacturing techniques
4. Customized configurations for your application


Specification
Circuits1-24 circuits
Operating Speed0-300rpm
Working Temperature-20~ +60
Working Humidity60%RH or higher
Electrical:
Voltage Rating380VAC/DC or higher
Current Rating2A/5A/10A/15A per circuit
Dielectric Strength≥800V@50Hz between each circuit
Insulation Resistance50MΩ@ 500VDC
Electrical Noise30mΩ Min
Mechanical:
Contact MaterialPrecious metal
Lead Wire LengthStandard 300mm (11.811inch)
Housing MaterialAluminum alloy
Torque≤9.25 g·m (for reference )
ProtectionIP44 or higher































Product outline drawing
300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control
Product Image
300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control
300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control

Our Services

1 1000.jpg21000.jpg3 1000.jpg4 1000.jpg5 1000.jpg

Company Information





1.jpg2.jpg3 .jpg4 .jpg5 .jpg

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
