Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal

China Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier
Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal supplier

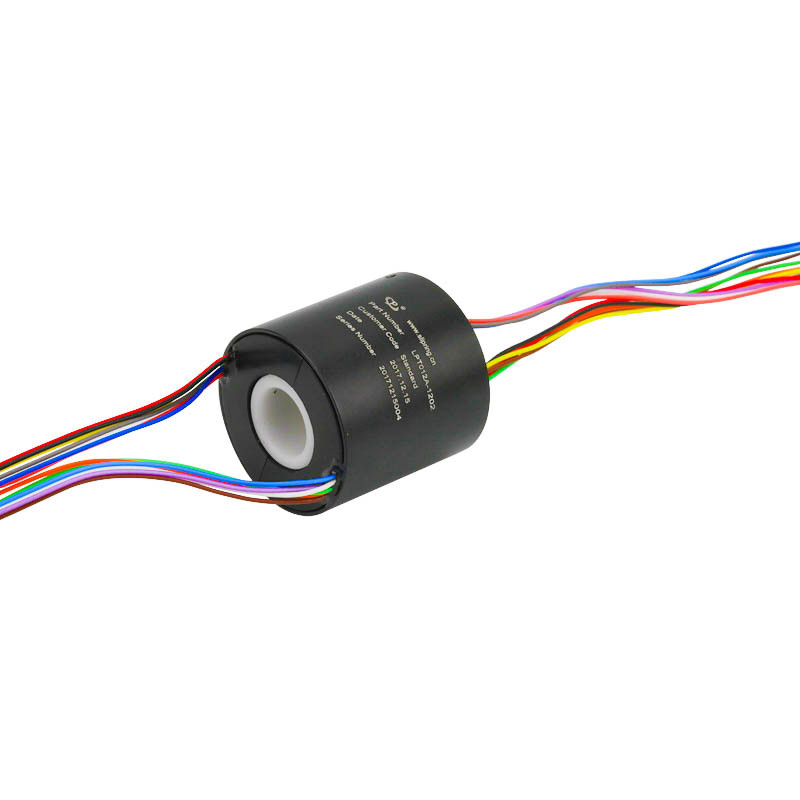

Large Image :  Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal

Product Details:

Place of Origin: China
Brand Name: JINPAT
Certification: ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number: LPT012 series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Standard/On Request
Delivery Time: 2 weeks ARO
Payment Terms: TT/CC/Paypal
Supply Ability: 1000 units/week
Contact Now
Detailed Product Description
Configuration: Through-hole Characteristic: High-speed
Application: Packaging Equipment Feature: Stable Performance
Contact Material: Precious Metal

12.7mm Through Hole Slip Ring Transmitting Current and Signal for Sweeping Robots





Description



LPT012 series through hole slip ring has researched and developed to be high speed, long lifetime typical union. Smaller the body length, more superior the performance.

It provides routing space for hydraulics, pneumatics or for a concentric shaft mount. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.

Test speed up to 2000rpm, service life to be 170000000rpm
Test speed up to 6000rpm, service life to be 44000000rpm
Test speed up to 10000rpm, service life to be 19500000rpm



Features



Precious metal contacts

5 amps & 10 amps. rings

Precision ball bearings for long life

Speed up to 500 rpm continuous

Compact size

Sealed units available

Flying Leads

Rugged black anodized aluminum construction



Advantage



Multi-contacting can ensure contacting reliable with low wear

Applied in many rigorous applications

Low torque minimizes system torque budget





Specification
Circuits 1-24 circuits
Operating Speed 0-500rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/ per circuit
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise 1mΩ Min
Mechanical:
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54 or higher



Product display

Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal

Application Picture

Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal

Cooperative Customer Case

Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal



Company Show

Sweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / SignalSweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / SignalSweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / SignalSweeping Robots Through Hole Slip Ring 12.7mm Transmitting Current / Signal

Company introduction



JINPAT is rich technologically in advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.



Frequently Asked Questions



What do we do?

We focus on developing, designing and manufacturing high-quality slip rings, and offer various solutions for rotating systems.



How long have we been in the business?

JINPAT has entered into slip rings business since 1996 with thousands of customers accepting our products or services. JINPAT can offer the right solutions to you.



Whom with us?

We have been cooperating and making breakthroughs in different industries. Our expertise can meet various requirements and standards as well as those in the military.



Why should I choose precious metal rather than mercury for contacts?

The primary reason is safety. Mercury is, of course, a toxic substance, so if your application involves food manufacturing or processing, pharmaceutical equipment, or any other use where contamination could be a serious threat, your choice should be precious metal contacts. As we all know, the leakage of mercury and the resultant contamination could.



Notes:


The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.


If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
