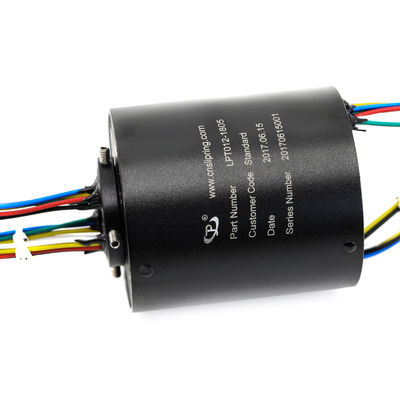

Sweeping Robots Through Hole Slip Ring 12.7mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Configuration | Through-hole | Characteristic | High-speed |
|---|---|---|---|
| Application | Packaging Equipment | Feature | Stable Performance |
| Contact Material | Precious Metal | ||
| Highlight | rotating slip ring,hollow shaft slip ring |
||
Product Description
12.7mm Through Hole Slip Ring Transmitting Current and Signal for Sweeping Robots
Description
LPT012 series through hole slip ring has researched and developed to be high speed, long lifetime typical union. Smaller the body length, more superior the performance.
It provides routing space for hydraulics, pneumatics or for a concentric shaft mount. It uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
Test speed up to 2000rpm, service life to be 170000000rpm
Test speed up to 6000rpm, service life to be 44000000rpm
Test speed up to 10000rpm, service life to be 19500000rpm
Advantage
Multi-contacting can ensure contacting reliable with low wear
Applied in many rigorous applications
Low torque minimizes system torque budget
| Specification | |
| Circuits | 1-24 circuits |
| Operating Speed | 0-500rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 2A/5A/10A/ per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| Electrical Noise | 1mΩ Min |
| Mechanical: | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g·m (for reference ) |
| Protection | IP54 or higher |
