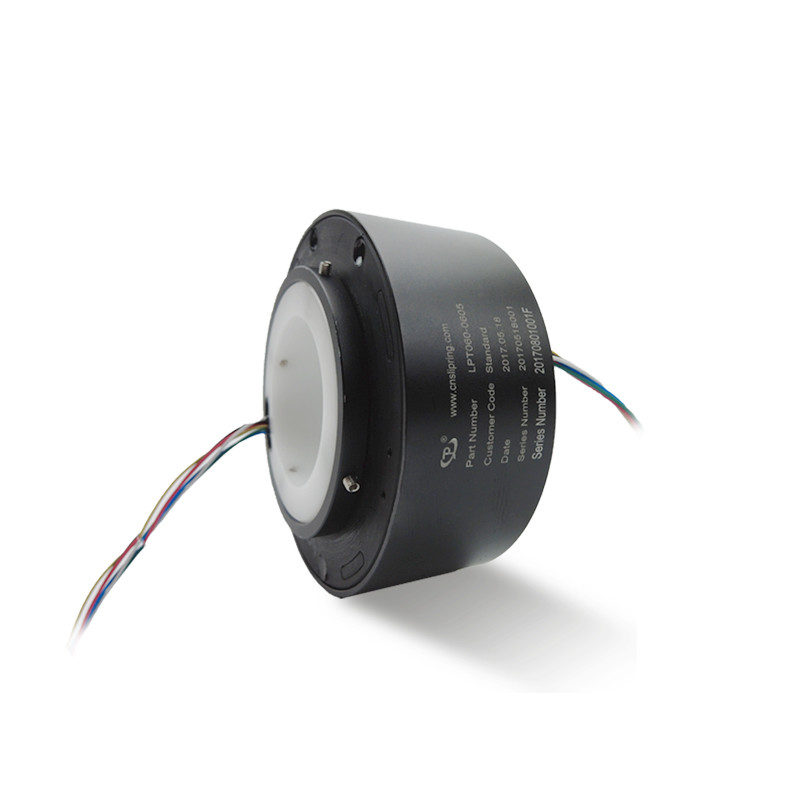

Through Bore Electrical Slip Ring 60mm 300 rpm

  • Through Bore Electrical Slip Ring 60mm 300 rpm
  • Through Bore Electrical Slip Ring 60mm 300 rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT060
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inner Diameter Φ60mm Working Speed 0~300rp
Contact Material Precious Metal Working Temperature -20°C~+60°C
Housing Material Aluminum Alloy Rating Voltage 240VAC/ DC
Lead Wire Length Stator:300mm Rotor:300mm
Highlight

300 rpm Through Bore Electrical Slip Ring

,

60mm Through Bore Electrical Slip Ring

,

Radar Antenna Electrical Slip Ring
Product Description

60mm 300 rpm Through Bore Electrical Slip Ring

Through Bore Slip Ring With 20-50 Amps Circuits

Slip rings enable the transfer of electric power or signal across a rotating part, such as those

found in radar antennae, gun turrets, periscopes, electro-optic sensor gimbals and space satellites. The sliding contact is established by a brush that presses against a metal ring. The “brush” looks like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring. This LPT060 slip ring with through bore size 60 mm, it can combine with power,signal,Ethernet,USB,Control Net,CANBUS, PROFIBUS, It could also be mounted by shaft or optional flange mounting.



Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~300rp
Detail 6X5A Inner Diameter Φ60mm
Rating Voltage 240VAC/ DC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+60° Other /
Working Humidity ≤60%RH





LPT060-0605-Outline Drawing


LPT060-0610-Outline Drawing






LPT060-0615-Outline Drawing






LPT060-1205-Outline Drawing

LPT060-1205 (2).png





LPT060-1210-Outline Drawing








LPT060-1215-Outline Drawing






LPT060-1805-Outline Drawing






LPT060-1810-Outline Drawing




LPT060-1815-Outline Drawing








LPT060-2405-Outline Drawing




LPT060-2410-Outline Drawing






LPT060-2410-Outline Drawing
