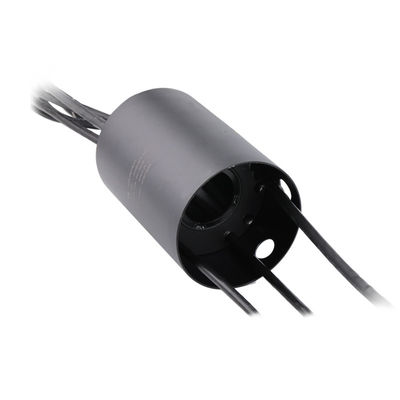

Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

  • Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm
  • Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm
  • Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT050
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inner Diameter Φ50mm Working Speed 0~300rp
Contact Material Precious Metal Operating Speed 300 Rpm
Housing Material Aluminum Alloy Rating Voltage 240VAC/ DC
Lead Wire Length Stator:300mm Rotor:300mm
Highlight

300rpm Through Bore Electrical Slip Ring

,

50mm Electrical Slip Ring

,

Aluminum Alloy Through Bore Slip Ring
Product Description

Aluminum Alloy Through Bore Electrical Slip Ring 300rpm Inner Diameter 50mm

LPT050 Series Slip Ring with Through Bore 50mm

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. The LPT050 uses JINPAT fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact friction per fiber and low contact wear rates. In addition,
fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Electronic & Electruc Mechanical
Circuits Total 6CKT Working Speed 0~300rp
Detail 6X5A Inner Diameter Φ50mm
Rating Voltage 240VAC/ DC Contact Material Precious Metal
Dielectric Strength 1000VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+60° Other /
Working Humidity ≤60%RH



Outline Drawing

LPT050-0605 (2).png

Outline Drawing







Outline Drawing



LPT050-0615 (2).png

Outline Drawing








   Outline Drawing



LPT050-1210 (2).png


Outline Drawing








Outline Drawing






Outline Drawing






Outline Drawing

LPT050-1815 (2).png

Outline Drawing




Outline Drawing


Outline Drawing
