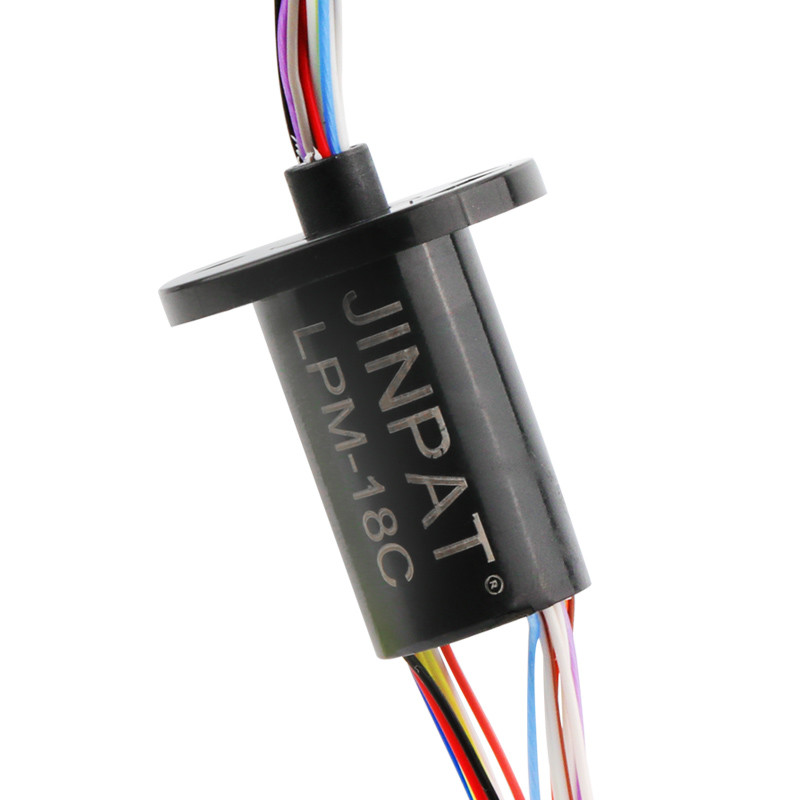

18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-18C
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week
Product Details
Operating Speed 0-250 Rpm Total Circuits 18
Contact Material Gold To Gold Lead Length Standard 250 Mm (9.843 Inch)
Electrical Noise 1 MΩMin Application Mechanical Arms
Insulation Resistance 100 MΩ @ 500 VDC
High Light

250 Rpm Capsule Slip Ring

,

Mechanical Arms Capsule Slip Ring

,

250 Rpm Mechanical slip ring capsule

Product Description

18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms



JINPAT Slip Rings for Bomb Disposal Robots,18 Circuits 0-250 rpm,Mechanical Arms

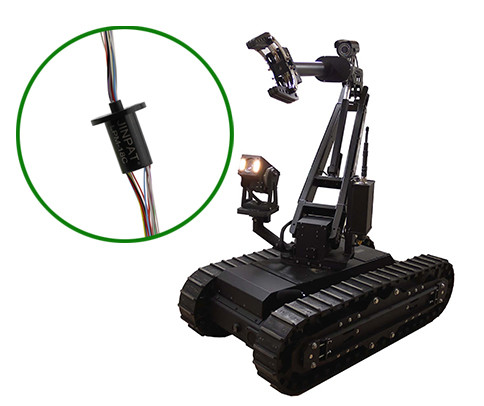

Bomb disposal is one of the most difficult task for human beings, which might breed many dangers. So bomb disposal robots are developed to assist human in such task. In fact, bomb disposal robot is actually a kind of unmanned vehicle that still need human to operate outside of the field. A bomb disposal robot is usually loaded with a high definition camera that helps to detect the environment. Such device should be allowed to rotate in 360-degree so as to provide a full-round view of the surroundings. And most importantly, the robot arm is the key to conduct the actual dismantling of a bomb. To enable a flexible and accurate movement of the robot arm, a slip ring is needed.

JINPAT Electronics is a slip ring manufacturer with abundant experience in producing slip rings for various purposes. As for bomb disposal robots, JINPAT also provides unique solutions.

JINPAT optoelectronic slip ring is a good choice to connect the high definition camera with the robot body. JINPAT LPT000-6402-E3-FO01 is able to transmit power and optical signals. So it is able to transmit angle signal to control the movement of the camera head while transmitting the high definition video signals back to the processor. It consists of two mules, namely the electrical module and the optical module. For the former unit, there are 64 2A power channels and 1 Gigabit Ethernet channel. As for the latter, it adopts a single mode optical rotary joint with 1 channel. With the assistance of this optoelectronic slip ring, the bomb disposal robot can capture a vivid and all-round view of the site.



Features



◆ 18 circuits

◆ Signal Defination: 1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS

◆ Speed up to 250 rpm continuous

◆ Gold-Gold contacts

◆ Compatible with data bus protocols

◆ Sealed units are available

◆ Flexible, color-coded, silver-plated lead wires

◆ Superior handling of low-level control signals

◆ Metal housing optional





Advantages:

  • Low torque minimizes system torque budget
  • Compact design to fit into the most demanding space.
  • Low in height, saving the space
  • Power and signal mixed
  • Anti-interference design
  • 360°continuous rotation
  • Flexible, color-coded, silver-plated, insulated lead wires
  • Addition of special components
  • Fully compatible with both analog and control level signals
  • Precision ball bearings for long life
  • Precision ball bearings for long life
  • Rugged anodized aluminum construction
  • Available with Ethernet
  • Rapid delivery
  • Trade safety, lowering the risk



Specifications
Operating Speed 0-250 rpm
Circuits 18
Voltage 240 VAC/DC
Singals  1*Gigabit Ethernet, 1*TRIG signal, 1*BUS signal, 1 *ACAP and 1 *ABUS
Temperature Range -20℃ to +60℃
Contact  Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
18 23.5 LPM-18C



Dimension







18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms 0





Product Display





18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms 1
















































































Company introduction


JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment, and 300 skillful employees. JINPAT slip ring is one of the best-known brands in Europe and North America.


It has advanced technical equipment with high precision test instruments. Our manpower is so competent that we meet the needs of different customers with various specifications in durability and a reliable quality.



Patent & Certification



18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms 2





PS: Apart from providing connector or terminal processing for clients, we have our own CNC center so that we can provide one-stop service of supporting parts manufacture like housing or other mounting-related mechanical parts.



18 Circuits 250 Rpm Capsule Slip Ring For Bomb Disposal Robots Mechanical Arms 3





FQA



1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
