Capsule 81 Circuits HD-SDI Slip Ring Transferring HD Video Signal with Wide Working Temperature Range for Video Surveill

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-3402-46S-HD01
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 12days ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week
Product Details
Name Hd Sdi Slip Ring Working Voltage 240VAC
Number Of Circuits 81 Current 2~5A
Application High-definition Video Surveillance, Serial Communication, Industrial Automatic Control Operating Speed 0~35 Rpm
Insulation Resistance 100MΩ@500VDC Electrical Noise ≤20mΩ
High Light

81 Circuits hd sdi slip ring

,

81 Circuits video slip ring

,

hd sdi slip ring

Product Description

Capsule 81 Circuits HD-SDI Slip Ring Transferring HD Video Signal with Wide Working Temperature Range for Video Surveillance



Description



       The HD-SDI slip ring is a kind of capsule slip ring that supports current, signal (including HD-SDI video signal) transmission. All military standardraw materials permit a high temperature resistance and ensure a high-quality transmission. Such slip rings, guaranteed by a full-fledged quality management system, have a large productivity of 5 million pieces per year, qualified an ultra-long operational life span.

It’s worth noting that customization is supported in spite of standard units available.



Specification



Circuit 34 ckt*2A, 46ckt *signal, 1ckt*HD-SDI
Working Voltage 240VAC
Dielectric Strength ≥500V@50Hz between circuits
Insulation Resistance 100MΩ@500VDC
Electrical Noise ≤20mΩ
Operating Speed 0~35 rpm
Contact Precious Metal
Wire Size AWG 26# Silver Plated ,  RG316 Coaxial Wire
Working Temperature -45~+80℃
IP  IP54
Life 20 Million Turns




Typical applications



  • High-definition video surveillance,
  • Serial communication, industrial automatic control



Product Display

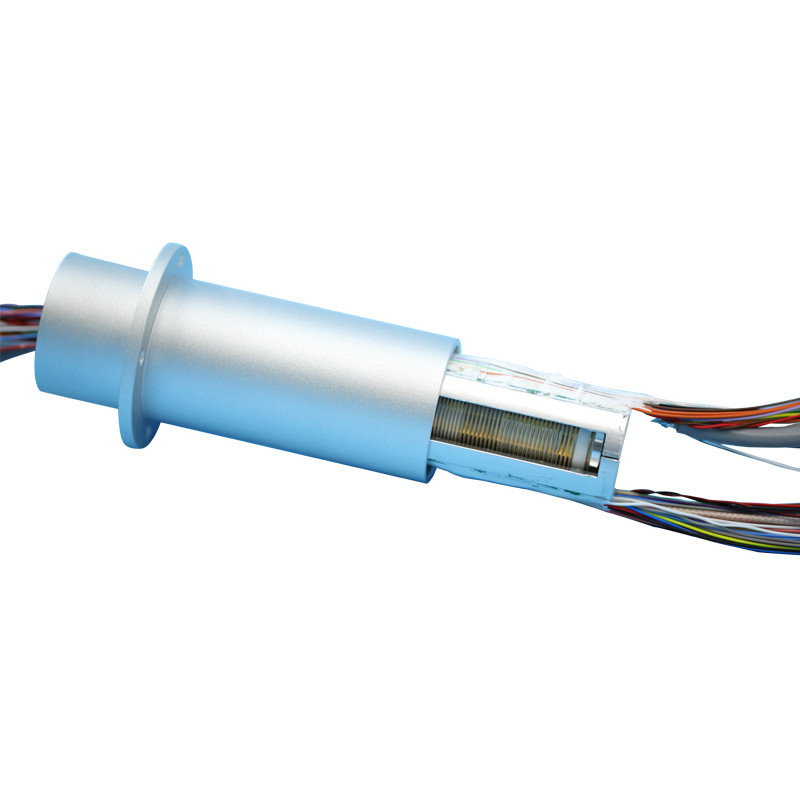

Capsule 81 Circuits HD-SDI Slip Ring Transferring HD Video Signal with Wide Working Temperature Range for Video Surveill 0

Application Picture

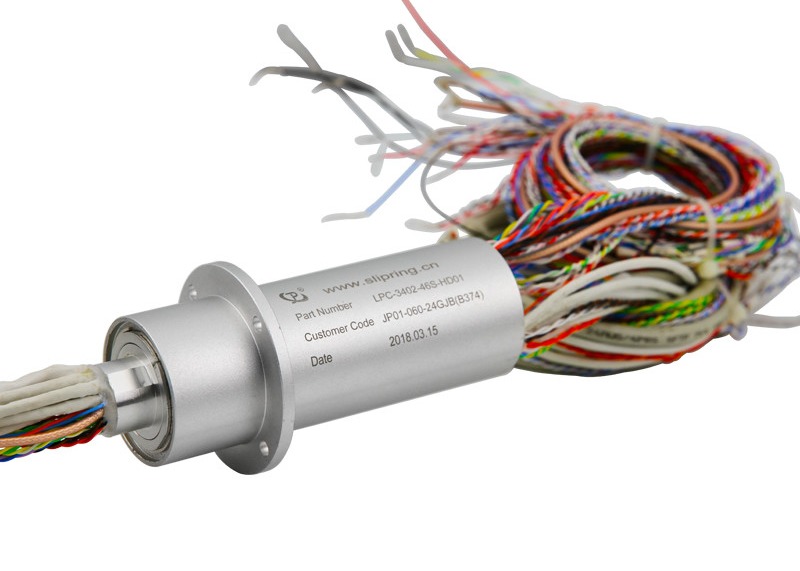

Capsule 81 Circuits HD-SDI Slip Ring Transferring HD Video Signal with Wide Working Temperature Range for Video Surveill 1















Factory show

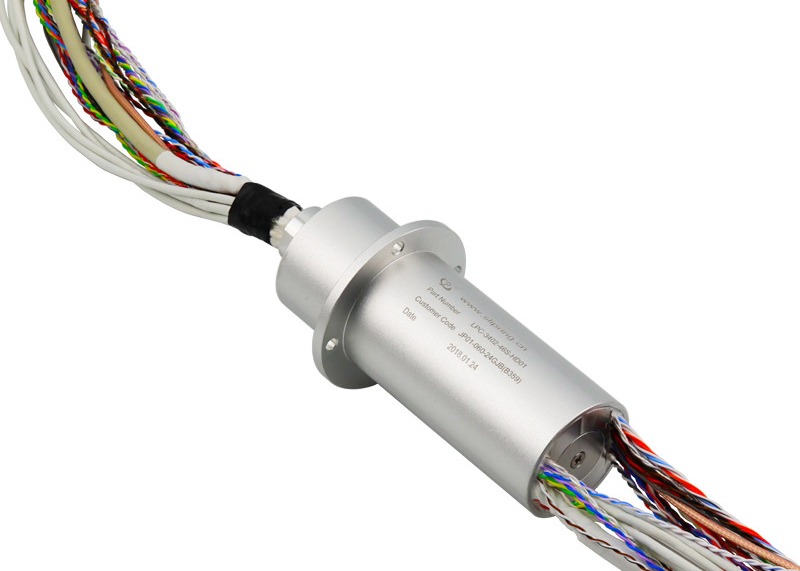

Capsule 81 Circuits HD-SDI Slip Ring Transferring HD Video Signal with Wide Working Temperature Range for Video Surveill 2
