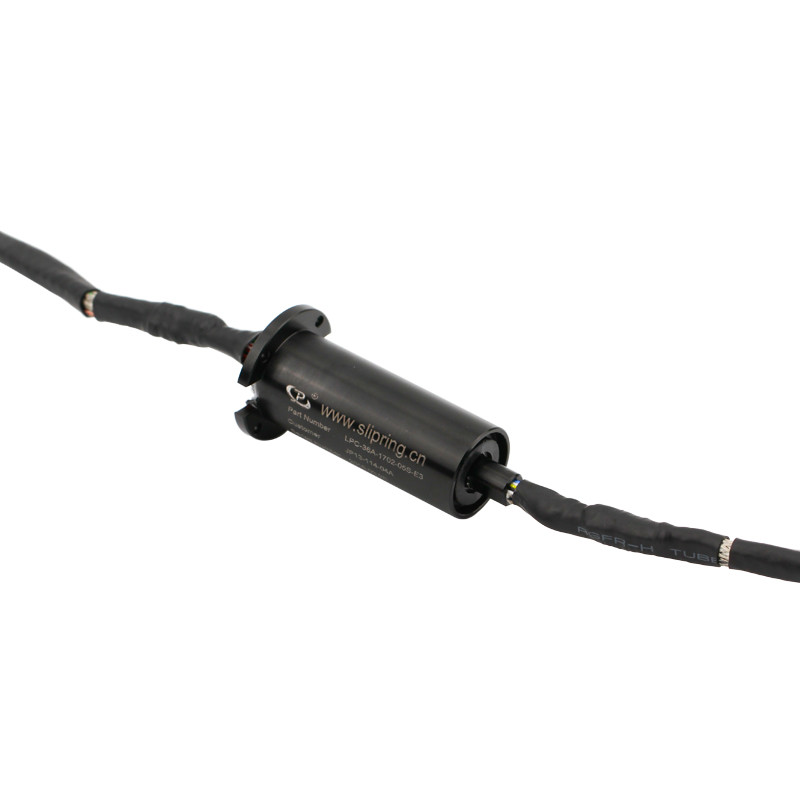

Gigabit Ethernet Slip Ring With Many Circuits Aluminum Alloy Housing

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-36A-1702-05S-E3
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week
Product Details
Type Gigabit Ethernet Slip Ring Circuits 23 Circuits
Voltage 240V Rotating Speed 0-300rpm
Working Temperature -40~+60℃ Humidity ≤60%RH
Electrical Noise ≤20mΩ Insulation 100MΩ@500VDC
High Light

signal slip ring

,

electrical slip ring

,

23 circuits Gigabit Ethernet Slip Ring

Product Description

Gigabit Ethernet Slip Ring with Many Circuits and Aluminum Alloy Housing for Industrial Machines



Description



Ethernet slip ring is an electric rotary joint aiming at the transmission of Ethernet signal. The LPC-36A-1702-05S-E3 is an electrical part that transmits electricity, Ethernet and other signals. Working in a temperature of -40~+60℃, it also has a protection level of IP54. For any request, technical support can be offered to achieve a custom solution.



Specification



Circuits 1circuit *Gigabit Ethernet, 5circuits *Signal, 17circuits *2A
Working Voltage 240V
Dielectric Strength Between circuits≥500VAC@50Hz
Insulation 100MΩ@500VDC
Electrical Noise ≤20mΩ
Working Speed 0~300 rpm
Contact Precious Metal
Housing Aluminum Alloy
Wire Size φ6.5-AWG28#Silver Plated
Wire Length

Rotor:800±5mm

Stator:800±5mm

Temperature -40°C~+60°C
Humidity ≤60%RH
IP IP54





Application

  • 1000-Base transmission
  • Motion Simulator
  • Video over Ethernet
  • CCTV IP-surveillance







Cooperative Customer Case
Gigabit Ethernet Slip Ring With Many Circuits Aluminum Alloy Housing 0

Company introduction


JINPAT is rich technologically in advanced equipment and high precision test instruments. It covers a wide area of 7000 square meters located in Shenzhen China. We have more than 300 skilled employees. The manpower is so competent that it can meet the needs of various specifications with durability and a reliable quality.



Here are our product lines:



  • Capsule Slip Rings
  • Through Hole/Bore Slip Rings
  • Separate Slip Rings
  • Pin Leads Slip Rings
  • Pancake/Flat Slip Rings
  • Ethernet Slip Rings
  • USB Slip Rings
  • HDMI/3G-SDI/DP Slip Rings
  • Wind Turbine Slip Rings
  • Carbon Brush Slip Rings
  • Coax Rotary Joints
  • Fiber Optic Rotary Joints
  • Rotary Unions
  • Rotary Joints




Notes



The operating life of the unit depends upon temperature, rotation speed, and environment. Contact us on wire color codes. We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email.

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.
