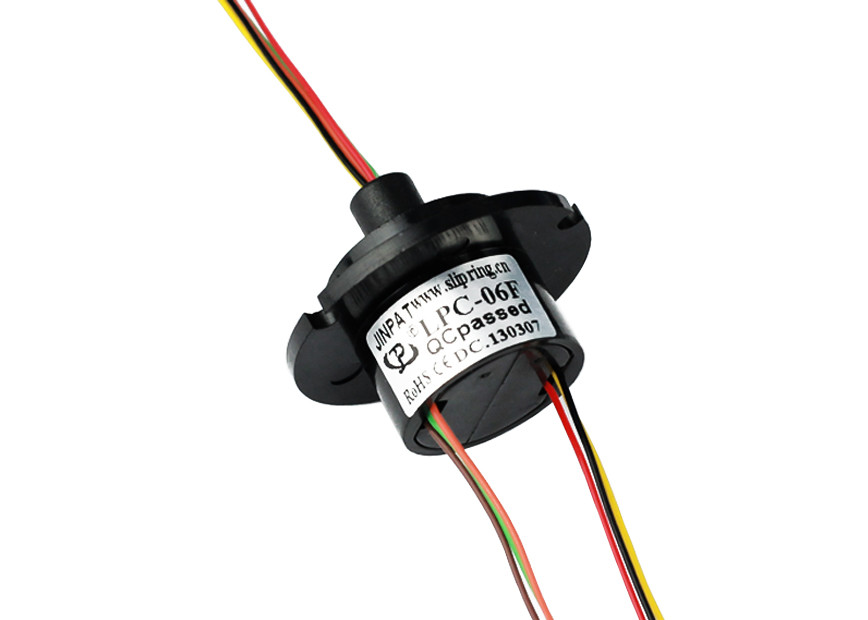

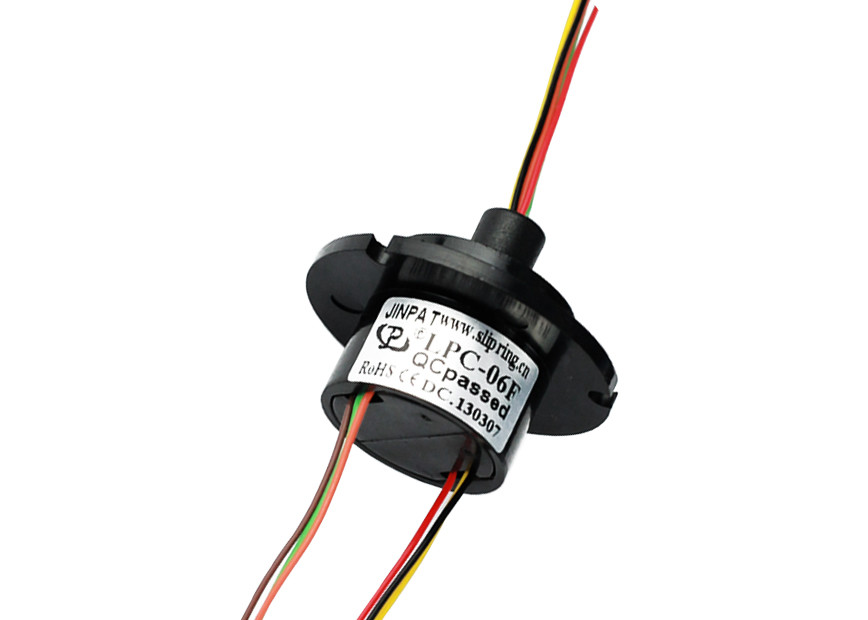

Capsule Slip Ring 6 Circuits 300rpm Rotating Speed
Product Details
| Operating Speed | 0-300 Rpm | Number Of Circuits | 6 |
|---|---|---|---|
| Voltage | 240 VAC/DC | Current Rating | 2 Amps Per Circuit |
| Contact Material | Gold To Gold | Lead Length | Standard 250 Mm (9.843inch) |
| Electrical Noise | 1mΩ Min | ||
| Highlight | compact slip ring,small slip ring,6 Circuits Capsule Slip Ring |
||
Product Description
6 Circuits Capsule Slip Ring of High Precision with 300rpm Rotating Speed Adopting Advanced Military Technique
Description
LPC-06F slip ring provides smoother running, lower torque and lower electrical noise than
competitive slip rings.This series of product enjoys very high precision and adopts advanced technique of surface-processing. Gold to gold contact and super long life time, which is especially suitable for the fields that transmit weak signal.
Product Specifications
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 6 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.
Outside Drawing
Application Picture
