IP54 Rotary Workbench Capsule Slip Ring 12 Circuit 2A Gold Contact 240VAC

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-12U
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week
Product Details
Operating Temperature -20°C~+60°C Electric Shock Material Gold To Gold
Working Speed 0~300 Rpm Protection Level IP54
High Light

compact slip ring


mini slip ring

Product Description

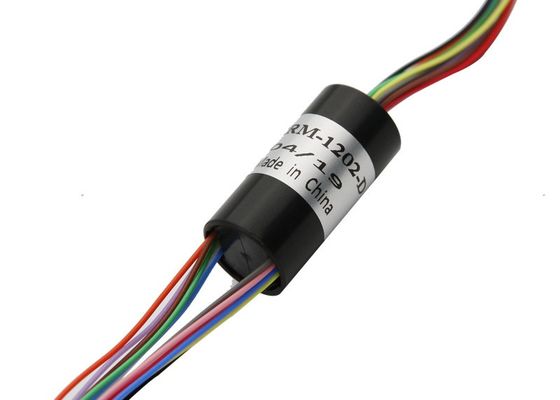

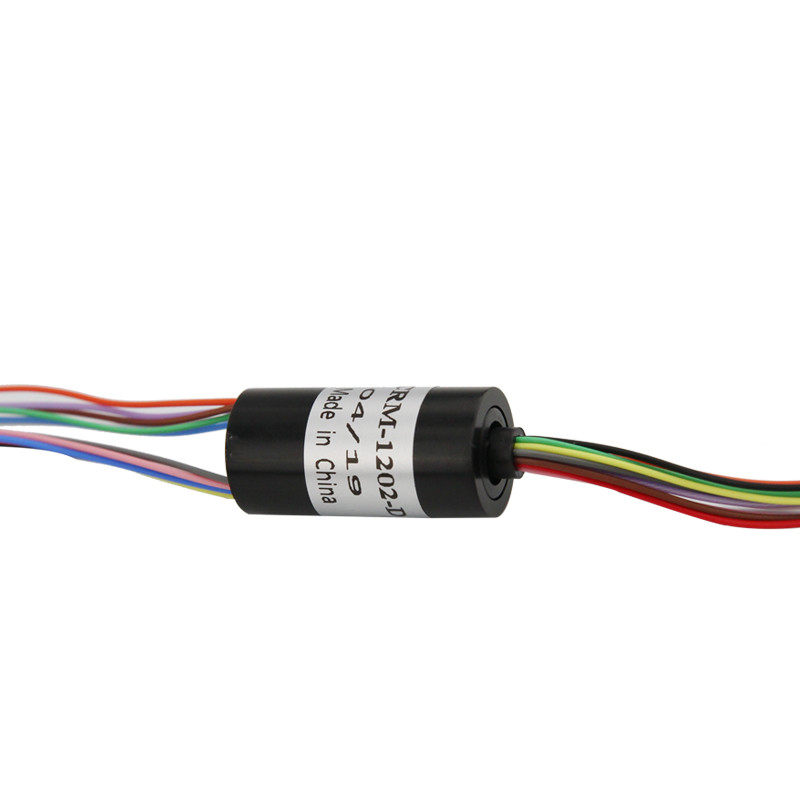

IP54 Rotary Workbench Capsule Slip Ring 12 Circuit 2A Gold Contact 240VAC

LPM-12U Super Miniature Slip Ring


This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part. The series of these compact sling ring capsules permit enormous versatility in dealing with the requirements of system size when there are no bigger models available.


The LPM-12U super miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

It allows tremendous flexibility in dealing with system size restrictions.


Main Application

  • Turrets or Cable Reels
  • Emergency Lighting, Robotics Palletizing Machines
  • Medical Equipment | Rotary Sensors
  • Miniature Cable Reels
  • Cable Reel
  • Analog Tester
  • Motors and Generators
  • Robotics Slip Rings
  • Welding Machine Slip Rings
  • Optical Pod
  • Turntable
  • Rotating Stages, Revolving Door
  • Lawn Mower


  • 12 circuits models
  • 2 amps per circuit, 240VAC/DC
  • Speed up to 300 rpm continuous
  • Gold-Gold contacts
  • Compatible with data bus protocols
  • Sealed units are available
  • Flexible, color-coded, silver-plated lead wires
  • Superior handling of low-level control signals
  • Metal housing optional


  • Low torque minimizes system torque budget
  • Compact design to fit into the most demanding space.
  • Low in height, saving the space
  • Power and signal mixed
  • Anti-interference design
  • 360°continuous rotation
  • Flexible, color-coded, silver-plated, insulated lead wires
  • Addition of special components
  • Fully compatible with both analog and control level signals
  • Precision ball bearings a or long life
  • Precision ball bearings for long life
  • Rugged anodized aluminum construction
  • Available with Ethernet
  • Rapid delivery
  • Trading safety, lowering the risk


Operating Speed 0-300 rpm
Circuits 12
Voltage 240 VAC/DC
RatedCurrent 2 amp per circuit
Temperature Range -20℃ to +60℃
Contact Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩ Min
Housing Engineering plastic or metal


Product drawings


IP54 Rotary Workbench Capsule Slip Ring 12 Circuit 2A Gold Contact 240VAC 0

Product display

IP54 Rotary Workbench Capsule Slip Ring 12 Circuit 2A Gold Contact 240VAC 1


Our Services

1 1000.jpg21000.jpg3 1000.jpg4 1000.jpg5  1000.jpg

Company Information





1.jpg2.jpg4 .jpg


1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.


2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.


3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
