Electrical Capsule Slip Ring Low Dynamic For Resistance Fluctuation Pan / Tilt Camera

Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPMS-08A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 100K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Super Miniature Slip Ring Number Of Circuits 8
Current Rating 1A Per Wire Voltage 240
High Light

compact slip ring

,

mini slip ring

Product Description

240V Gold To Gold Miniature Slip Ring Low Dynamic Resistance Fluctuation for Pan / Tilt Camera



LPMS-08A Slip Ring Description



A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.



Typically, slip ring consists of a stationary graphite or metal contact (brush) which rubs on the outside diameter of a rotating metal ring. As the metal ring turns, the electric current or signal is conducted through the stationary brush to the metal ring making the connection.



Specifications
Operating Speed 0-300 rpm
Circuits 8
Voltage 240 VAC/DC
Temperature Range -20℃ to +60℃
Contact Precious metal
Dynamic resistance fluctuation value ≤35mΩ
Lead Length Standard 250 mm (9.843inch)
Working humidity 60% RH or higher
Housing material

Factory plastic
Electrical Noise 1mΩMin



LPMS-08A Slip Ring Feature

  • 8 circuits models
  • 1 amps per circuit, 240VAC/DC
  • Precision assembly to provide exceptional rotational life
  • Speed up to 300 rpm continuous
  • Gold-Gold contacts
  • Flexible, color-coded, silver-plated, lead wires
  • Superior handling of low-level control signals



LPMS-08A Slip Ring Advantage

  • Compact design to fit into the most demanding space.
  • Smooth running
  • Low electrical noise
  • Quick shipment per your urgent requirement
  • 360°continuous rotation
  • Addition of special components

Dimension

Electrical Capsule Slip Ring Low Dynamic For Resistance Fluctuation Pan / Tilt Camera 0

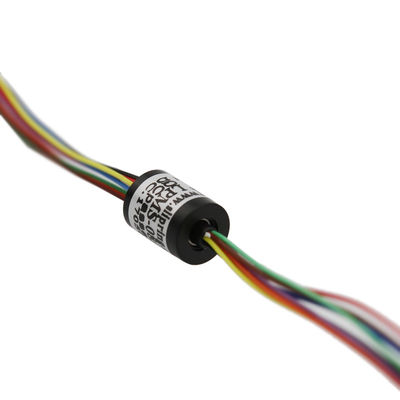

Product Display

Electrical Capsule Slip Ring Low Dynamic For Resistance Fluctuation Pan / Tilt Camera 1

Our Services

1 1000.jpg21000.jpg3 1000.jpg4 1000.jpg5  1000.jpg

Company Information









1.jpg2.jpg3 .jpg4 .jpg


FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.



2. How long have we been in the business?

Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.



3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.



4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.



5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
