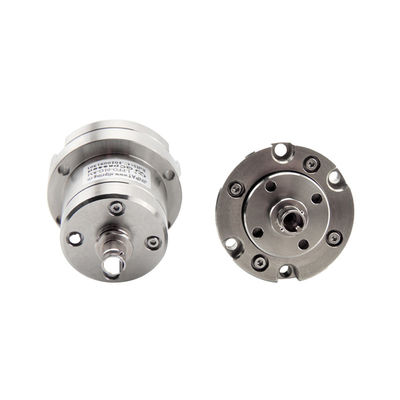

No Friction IP54 1650nm 1000rpm Fiber Optic Slip Ring
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Channels | 1 | Insertion Loss | <2dB |
|---|---|---|---|
| Maximum Speed | 1000rpm | ||
| High Light | 1000rpm Fiber Optic Slip Ring,1650nm Fiber Optic Slip Ring,IP54 Single Channel Slip Ring |
||
Product Description
LPFO-01G pigtailless interface optical fiber slip ring adopts ST-ST socket design, which is convenient for direct installation and removal of optical fiber jumpers, and rapid networking applications. 360-degree rotating transmission optical signal, single and multi-mode optional, with low loss, wide wavelength range, high speed, long life and so on. Can integrate slip ring to transmit power, video, communication, bus, control and other signals
Advantages
- No pigtail interface design, convenient and quick installation and disassembly
- Single multi-mode optional, wide wavelength, low loss
- No contact, no friction, high speed, long life, up to 100 million revolutions or more
- Rugged structure, standard IP54 protection, can be used in harsh environments
- Integrated slip ring to transmit power, video, communication, bus, control and other signals
Application
Robots, Radar Systems, Photoelectric Pods, Fire Control Systems, Zhoushi Plat form, Video Surveillance Systems, Medical Systems
Technical Parameter
| Optical | Mechanical | ||
| Number of channels | 1 | Maximum speed | 1000rpm |
| Working wavelength |
Single mode:1270-1650nm
Multi mode:650-1300nm
|
Life span | >100 million revolutions |
| Insertion loss | <2dB | Package form | ST female seat |
| Insertion loss
change value
|
<1dB | Connector type | ST/PC |
| Return loss | Single mode:>40dB
Multi mode:>25dB
|
Vibration standard | MIL-STD-167-1A |
| Maximum power | 23dBm
(high power can be customized)
|
Impact standard | MIL-STD-810G |
| Environmental | |||
| Operating
Temperature
|
-40~75°C |
IP Protection Level
|
IP54 or higher
|
| Storage
Temperature
|
-50~85°C | ||
LPFO-01G Outline Drawing
