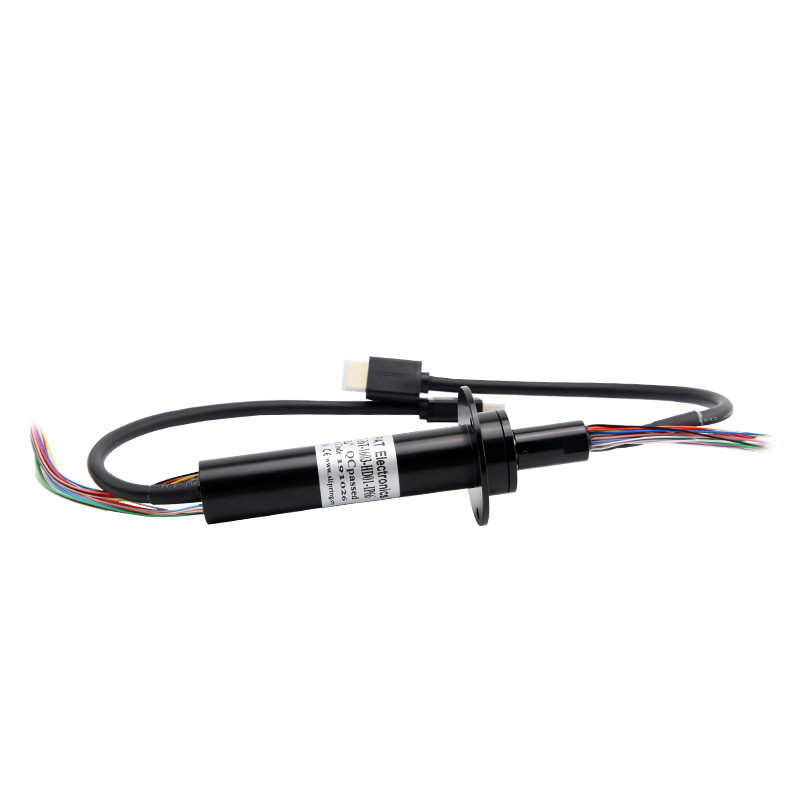

Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm

  • Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm
  • Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-36T-1603-HD01-IP66(JP35-057-01HW)
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IP 66 Working Humidity ≤60％RH
Working TEmperature -20℃~+60℃ -20℃~+60℃ Gold-to-gold
Housing Material Aluminum Alloy Rotating Speed 0-400rpm
High Light

IP66 Capsule Slip Ring

,

400rpm Capsule Slip Ring

,

400 rpm Ethernet Rotary Joint
Product Description

Rotating Electrical IP66 Capsule Slip Ring 16 Circuits 400rpm Ethernet Rotary Joint



JINPAT LPC-36T-1603-HD01-IP66(JP35-057-01HW) is a capsule slip ring model that takes up aluminum alloy as housing material. This model has 36 channels at total, among which 16 channels are 3A power channels and 1 HDMI channel. LPC-36T-1603-HD01-IP66 adopts gold to gold contact which contribute to its great electronic performance and smooth operation during rotations. The rotating speed ranges from 0~400rmp. This slip ring model can work in low and high temperature while maintain a fine and stable operation. It can also cope with humid environment, withstands humidity below 60%RH. With protection grade up to IP66, JINPAT LPC-36T-1603-HD01-IP66 is able to transmit signal and power in a stable and reliable way even in a demanding environment.



Electrical & Electronics Mechanical
Number of
Circuits		 36CKT Rotating
Speed		 0-400rpm
16Circuits*3A /1Circuit*HDMI
Rating Voitage 0~70V AC/DC Contact
Material		 Gold-to-gold
Insulation
Resistance		 ≥100MΩ@500VDC(P)
≥10MΩ@100VDC(S)		 Housing
Material		 Aluminum Alloy
Dielectric Strength ≥500VAC@50Hz(P)
≥100VAC@50Hz(S)		 Lead Wire Length Stator:250±5mm
Rotor:250±5mm
Environment Remarks
Working TEmperature -20℃~+60℃ Application /
Working Humidity ≤60％RH Other /
IP 66 Note:"P"stands for power,"S"stands for signal.

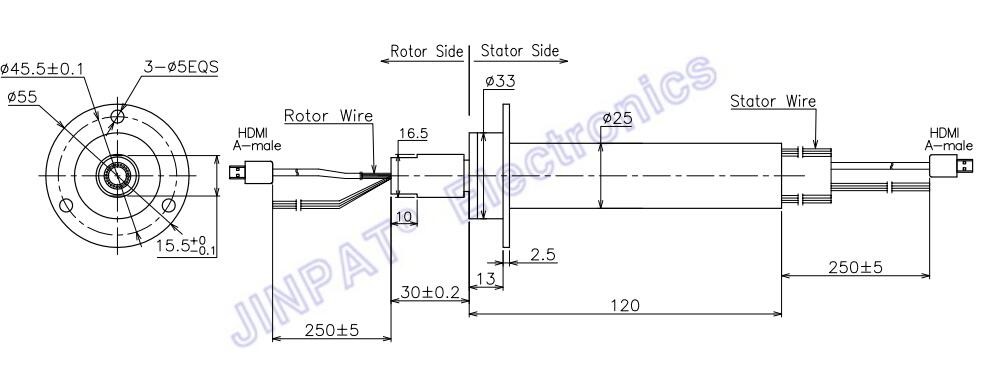

Product outline drawing

Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm 0

Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm 1

Rotating Electrical Capsule Slip Ring 16 Circuits 400rpm 2

The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
