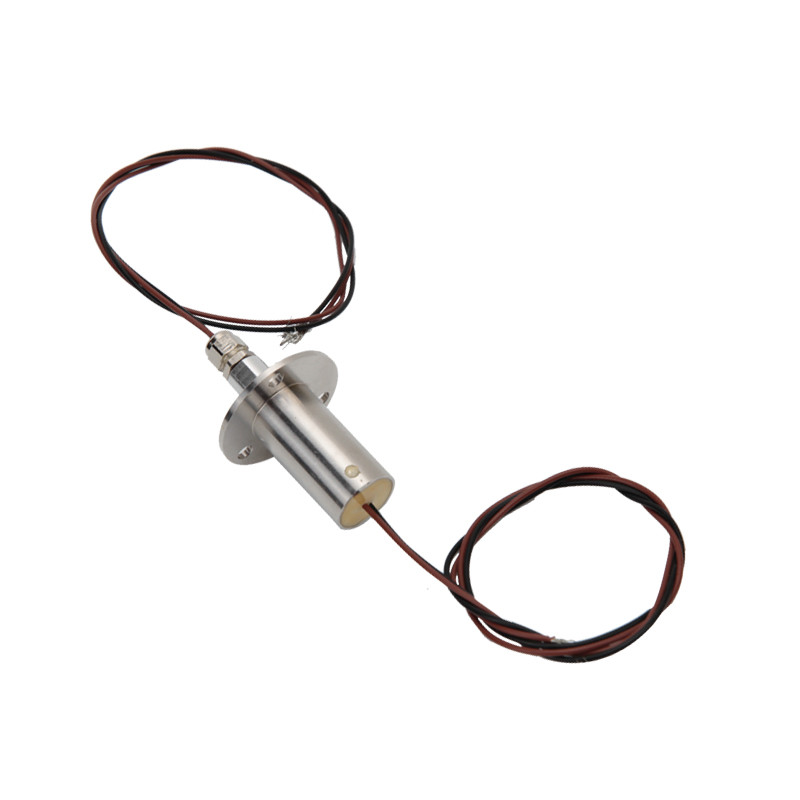

Capsule Slip Ring 2 Circuits IP68 100rpm LPC-0206-IP68

  • Capsule Slip Ring 2 Circuits IP68 100rpm LPC-0206-IP68
  • Capsule Slip Ring 2 Circuits IP68 100rpm LPC-0206-IP68
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-0206-IP68(JP09-047-01)
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 2Circuits*6A Rating Voitage 240V AC/DC
Dielectric Strength ≥500VAC@50Hz Rotating Speed 0-100rpm
Contact Material Gold-to-gold Housing Material Aluminum Alloy
High Light

100rpm Capsule Slip Ring

,

IP68 Capsule Slip Ring

,

100rpm Electrical Slip Ring
Product Description

IP68 100rpm Capsule Slip Ring 2 Circuits Testing Equipment Electrical Slip Ring



JINPAT LPC-0206-IP68 is a slip ring model with compact structure design. It is a slip ring model of JINPAT capsule slip ring series. Aluminum alloy is adopted as the housing material of LPC-0206-IP68. Besides, this capsule slip ring also adopt gold to gold contact and a refined inner structure which greatly improve the electronic properties of the slip ring model as a whole. With IP68 protection grade, LPC-0206-IP68 is adapt to high humidity working environment. LPC-0206-IP68 is able to withstand high and low temperature. Feature as such makes the capsule slip ring rather flexible to work under various kinds of demanding conditions. Insulation resistance is ≥100mΩ@500VDC,it can work at 240V AC/DC circuit. This slip ring model also features low torque and low friction. Given all these features, JINPAT LPC-0206-IP68 slip ring can provide a powerful and stable signal and power transmission.



Product outline drawing



Capsule Slip Ring 2 Circuits IP68 100rpm LPC-0206-IP68 0

Product parameter table



Electrical & Electronics Mechanical
Number of
Circuits		 2CKT Rotating
Speed		 0-100rpm
2Circuits*6A
Rating Voitage 240V AC/DC Contact
Material		 Gold-to-gold
Insulation
Resistance		 ≥100MΩ@500VDC Housing
Material		 Aluminum Alloy
Dielectric Strength ≥500VAC@50Hz Lead Wire Length Stator:250±5mm
Rotor:250±5mm
Environment Remarks
Working TEmperature -20℃~+60℃ Application /
Working Humidity ≤60％RH Other /
IP 68 Note:"P"stands for power,"S"stands for signal.



The LPM micro-capsule slip ring can integrate 30 or more circuits, and the optional outer diameter is 12.5mm~16mm. This series adopts advanced military surface treatment technology, featuring high precision, compactness and easy assembly. The gold-to-gold contact ensures low resistance and long service life. Representative models: LPM 04A / 06A / 12F / 18C / 24A / 30A, etc. It can integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, FireWire, SDI and HDMI, etc. In addition, various non-standard slip rings can be customized.
