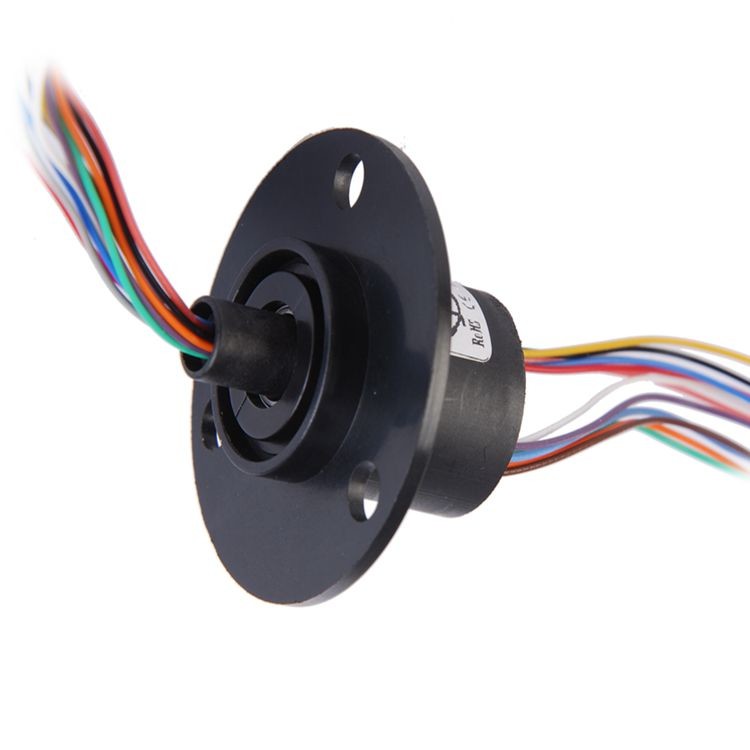

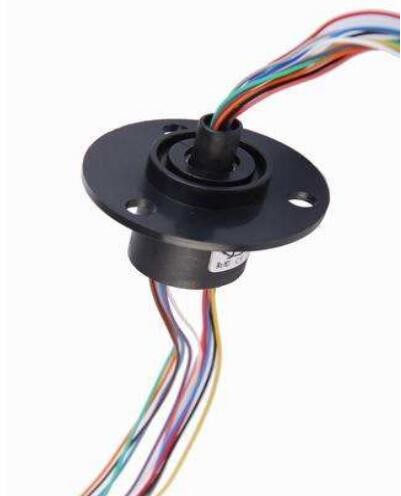

240 VAC 12 Circuits Capsule Slip Ring 2A 300 Rpm Rotating Speed,Free slip ring customization
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 12 | Voltage | 240 VAC/DC |
|---|---|---|---|
| Current Rating | 2 Amps Per Circuit | Contact Material | Gold To Gold |
| Speed | Up To 300 Rpm | Advantage | Low Electrical Noise |
| IP | IP40 | Detail | 12x2A |
| High Light | 12 Circuits Capsule Slip Ring,240 VDC Capsule Slip Ring,240 VDC rotary slip ring |
||
Product Description
240 VAC/DC Electrical Slip Ring 12 Circuits 2A Per Circuit Up to 300 Rpm Rotating Speed,Free slip ring customization
Description
The Slip Rings Series, thanks to its extreme compactness, guarantees a low outer speed between rings and brushes, thus to reduce material consumption so as to enhance its lifetime.This Series has been designed keeping flexibility, cost-effectiveness, and reliability in mind.
The LPC-12A capsule slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
LPC-12A provides smoother running, It is available in 6, 12 circuits model.
Features
- 12 circuits models
- 2 amps, 240VAC/DC per circuit
- Speed up to 300 rpm continuous
- Gold-Gold contacts makes long lifetime
- Compatible with data bus protocols
- Sealed units are also available
- Flexible, color-coded, silver-plated, insulated lead wires
- Transfers analog and digital signals
- Also available with 5 and 10 amps power rings combined with 2 amps rings.
- Precision ball bearings meet or exceed life requirements for most commercial applications
Advantages
- Slip ring guarantees a low electrical resistance and a stable structure
- Minimise noise and interferences between the rings
- High data rate and frequency signal transmission
- Signal and power can be combined in same slip ring
- Double precision roller bearings for lower torque & long life
Main Applications
- CCTV pan / tilt camera mounts
- Robotics, rotary sensors, urgent illumination equipment
- Laboratory equipment
- Shadowless lamp, CT machine
- Cable Reel
- Analog Tester
- Motors and Generators
| Electronic & Electric | Mechanical | |||
| Circuits | Total | 12 CKT |
Working Speed |
0~300rpm |
| Detail | 12x2A | Contact Material | Gold to Gold | |
| Rating Voltage | 0~240V AC/DC | Housing Material | Engineering plastics | |
| Dielectric Strength | ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) | Lead Wire Length | Stator:250±5mm Rotor:250±5mm | |
| Insulation Resistance | ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Dynamic Resistance Fluctuation Value |
≤35mΩ | |
| Environment | Remarks | |||
| Working Temperature | -20°C~+60°C | Application | / | |
| Working Humidity | ≤60%RH | Other | / | |
| IP |
IP40 |
Note: "P" stands for power, "S" stands for signal. | ||
◆ The operating life of the unit depends upon temperature, rotation speed, and environment.
◆ The operating life ≥50,000,000 runs ref.
